Notice: English Instructions are at the bottom of the details page.

Features

1.Light and thin. There is also an ultra-highcolor valueUnder the thin fuselage

2.1.77 inch color large screenClear, intuitive and good-looking

3.4W Trans with power:Thin and light body, surging performance,challenge thin and light walkie-talkies.performance experience.

4.Years of St The strength is superior

5.A variety of write frequencymethods. The pairing processis extremely carefree.

Usage Instructions

Power On/Off:

1.Press and hold the power button for 3 seconds to display the startup interface, and the intercom will power on.

While in standby mode, long press the power button, and select shutdown or restart from the popup menu.

2.Channel Setting:

After powering on, you can switch the current channel on the main interface using the up and down keys. Alternatively, you can press the right button to enter the channel interface and select the desired channel according to the prompts.

3.Intercom:

After powering on, set the intercoms to the same channel to communicate.

Hold down the call button while speaking into the intercom, positioned approximately 3-5cm in front of you, to send voice messages in real-time.

Basic Parameters

Product Model: XMDJJ04FY Input Parameters: 5V-2A

Product Size: 55x22.7x170mm Channel Range: 430,000 MHz-440.0000MHz

Type: Type-C Transmit Power: 4W Interface
x

Product Net Weight: 139.5G headphone jack: 3.5mm

Charging Temperature: 0°C~45°C Battery Nominal Voltage: 3.8V

Product Color: Deep Space Gray Battery Capacity: 2190mAh (8.3Wh)

Screen size: 1.77 inches Screen resolution: 128x160

Receiver Sensitivity: 122dBm (12dB SINAD)

(including antenna length 50mm, back clip thickness 7.7mm) Operating Temperature: -20°C~45°C

Packing list

walkie-talkie x1

Type-C charging cable x 1

instructions x1

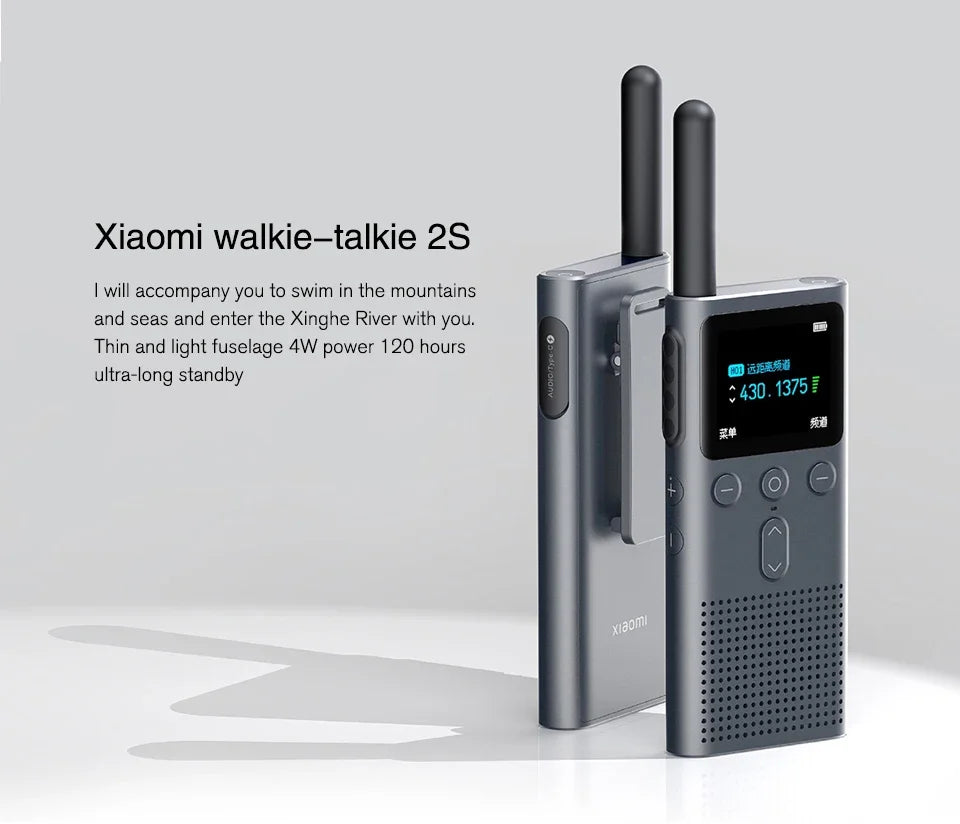

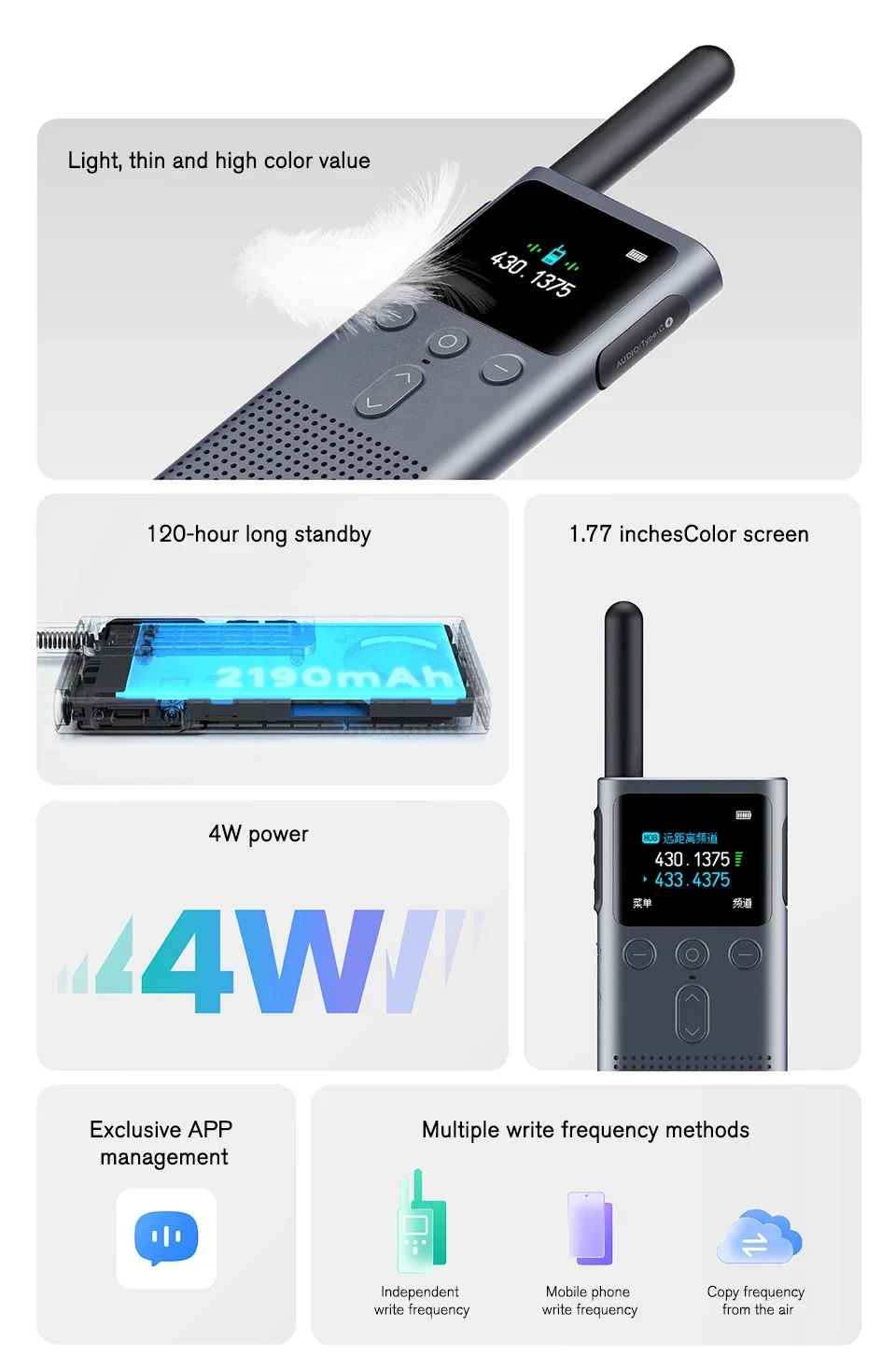

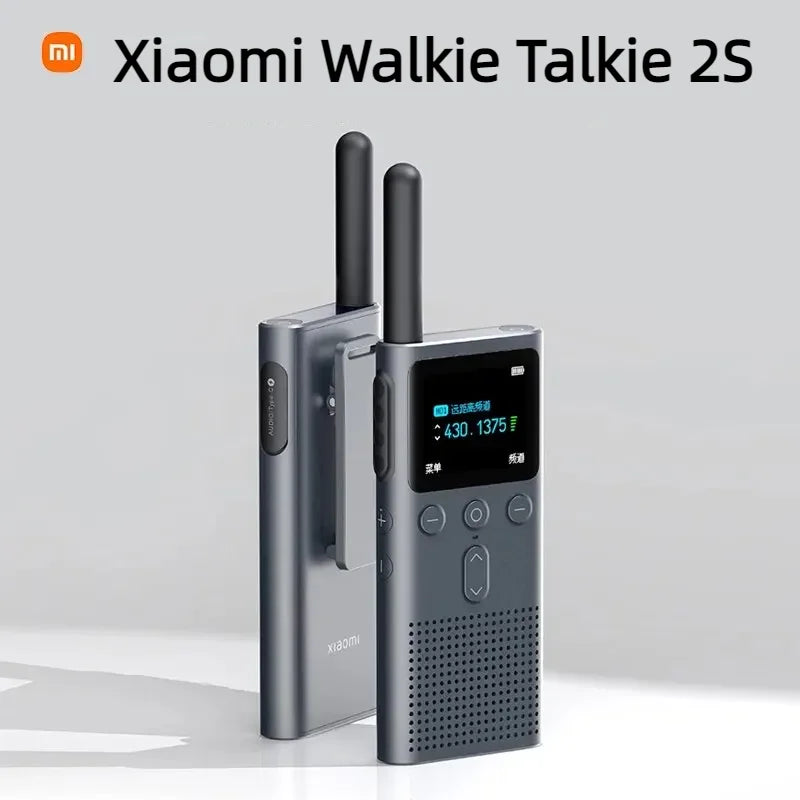

Xiaomi walkie-talkie 2S

I will accompany you to swim in the mountainsand seas and enter the Xinghe River with you.Thin and light fuselage 4W power 120 hoursultra-long standbyLight, thin and high color value

120-hour long standby

4W power

1.77 inchesColor screen

Exclusive APP

management

Multiple write frequency methods

Independent write frequency

Mobile phone write frequency

Copy frequency from the air

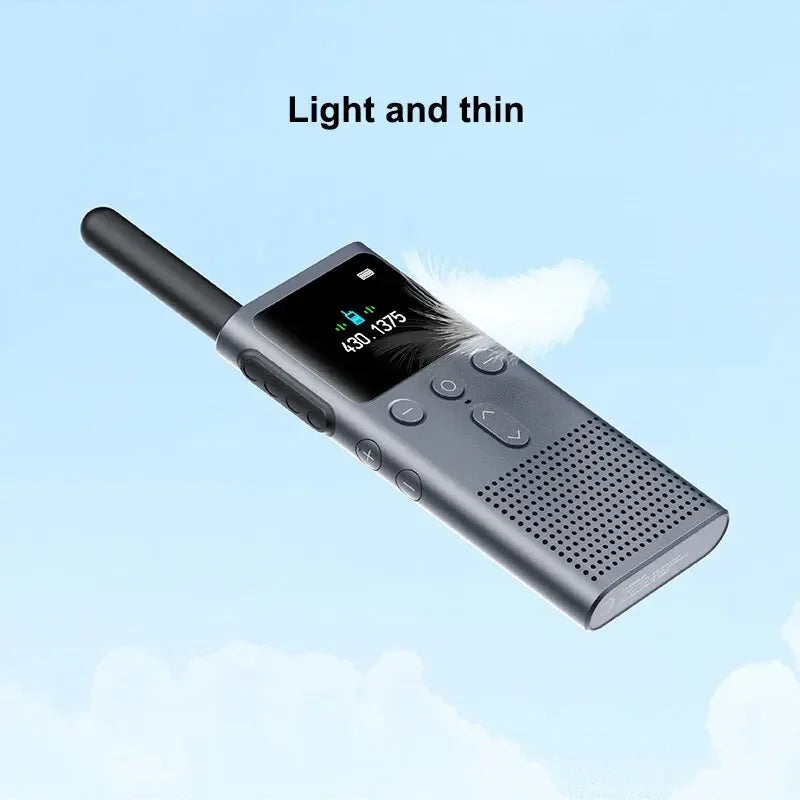

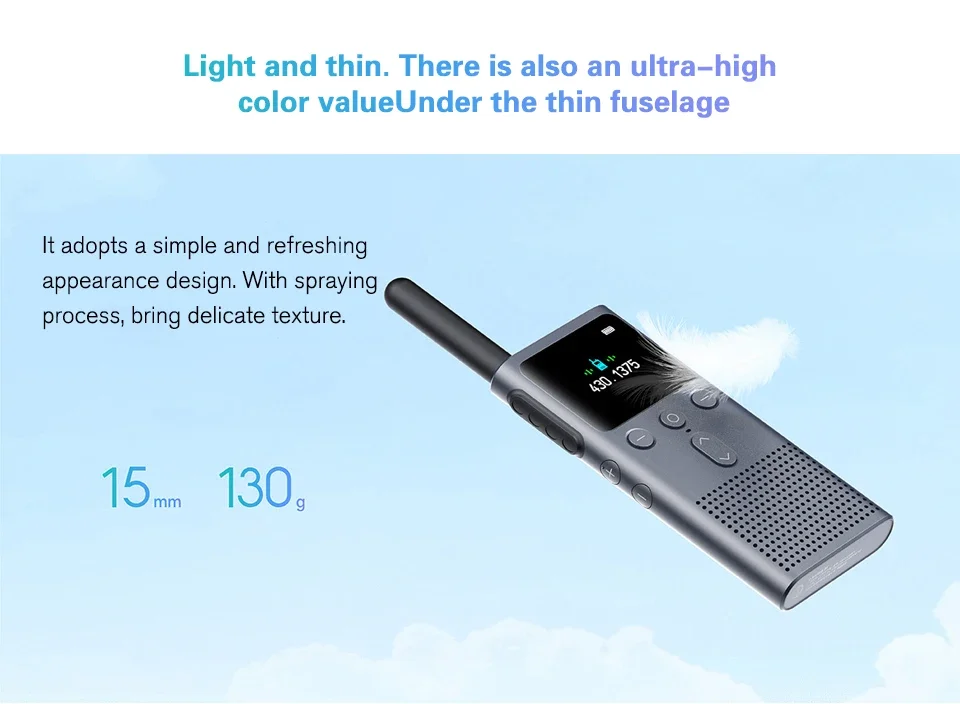

Light and thin. There is also an ultra-highcolor valueUnder the thin fuselage

It adopts a simple and refreshingappearance design. With sprayingprocess, bring delicate texture.

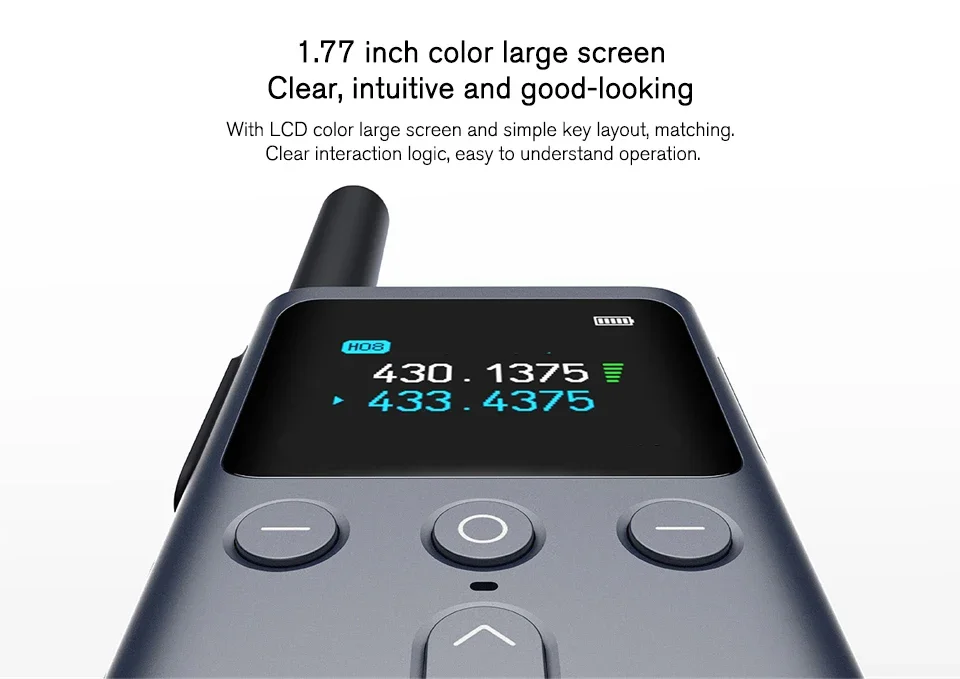

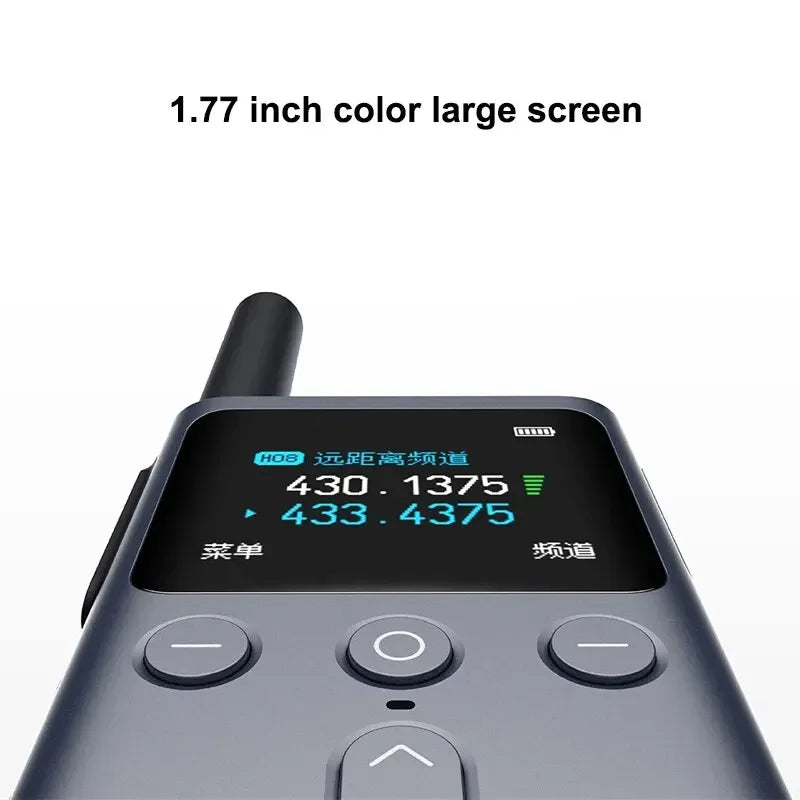

1.77 inch color large screenClear, intuitive and good-looking

With LCD color large screen and simple key layout, matching.Clear interaction logic, easy to understand operation.

4W Trans with power

Thin and light body, surging performance,challenge thin and light walkie-talkies.performance experience.

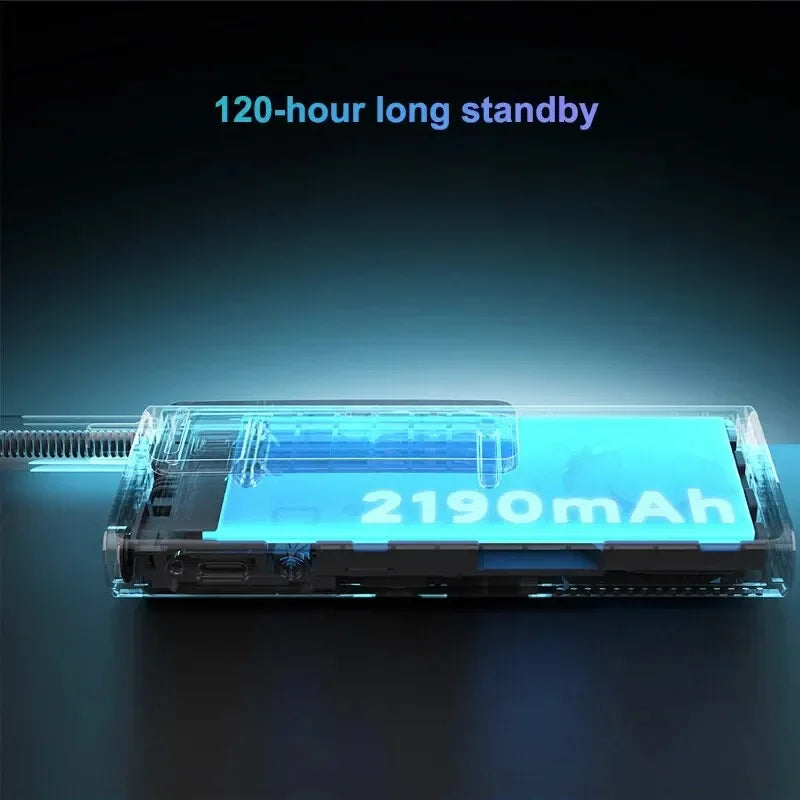

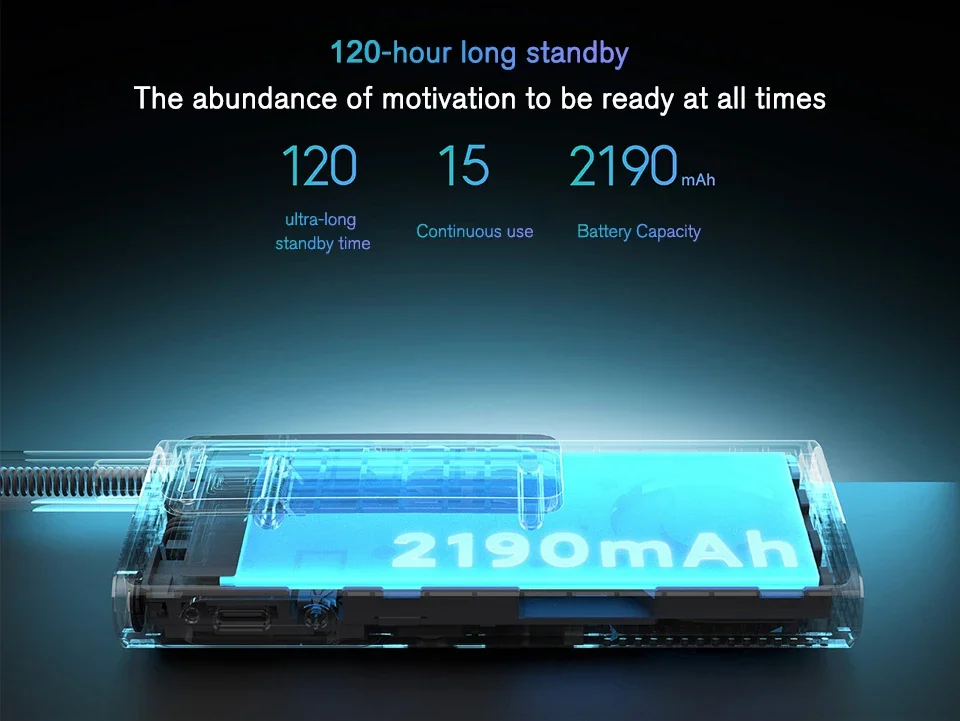

120-hour long standby

The abundance of motivation to be ready at all times

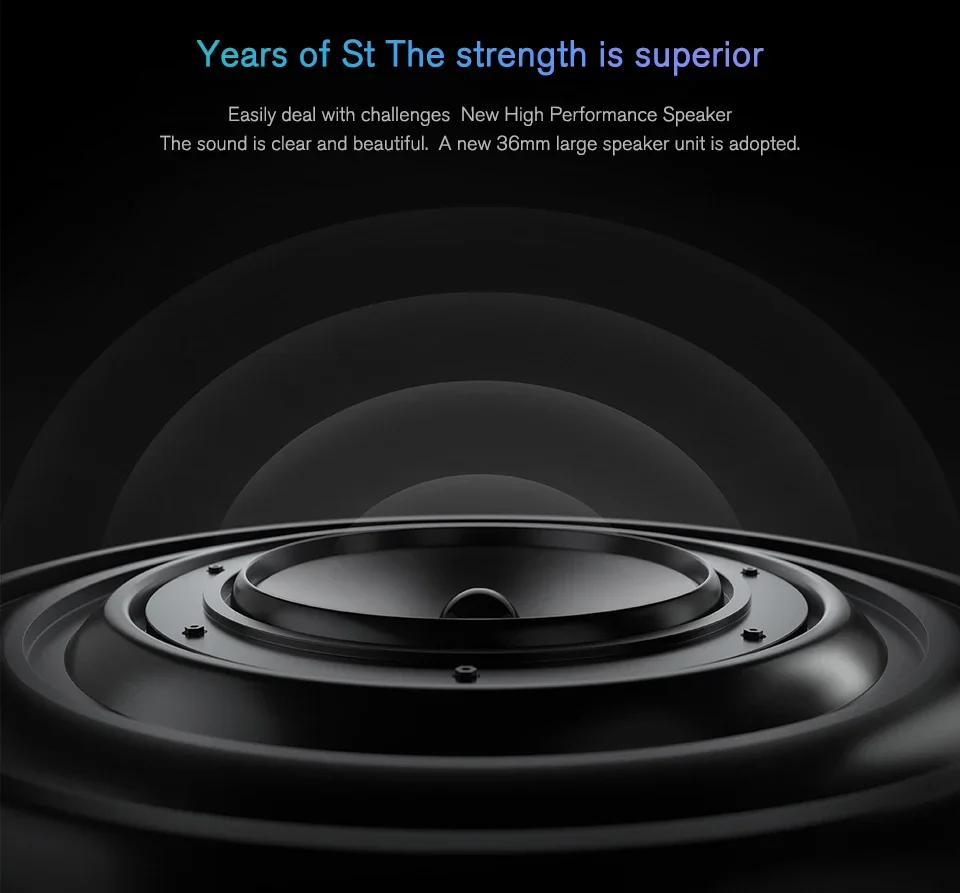

Years of St The strength is superior

Easily deal with challenges New High Performance Speaker

The sound is clear and beautiful. A new 36mm large speaker unit is adopted.

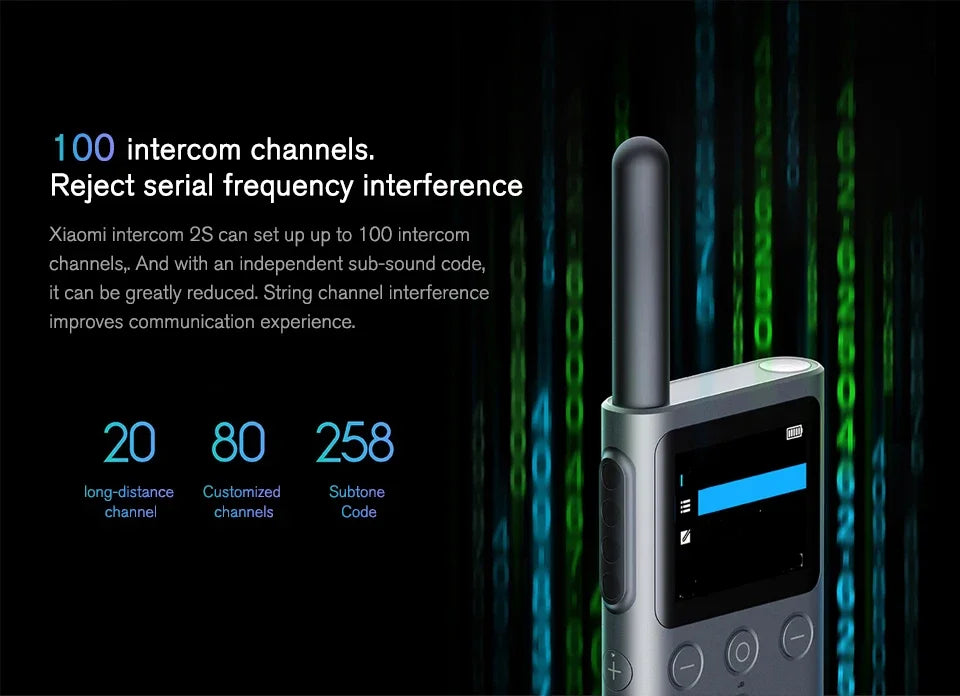

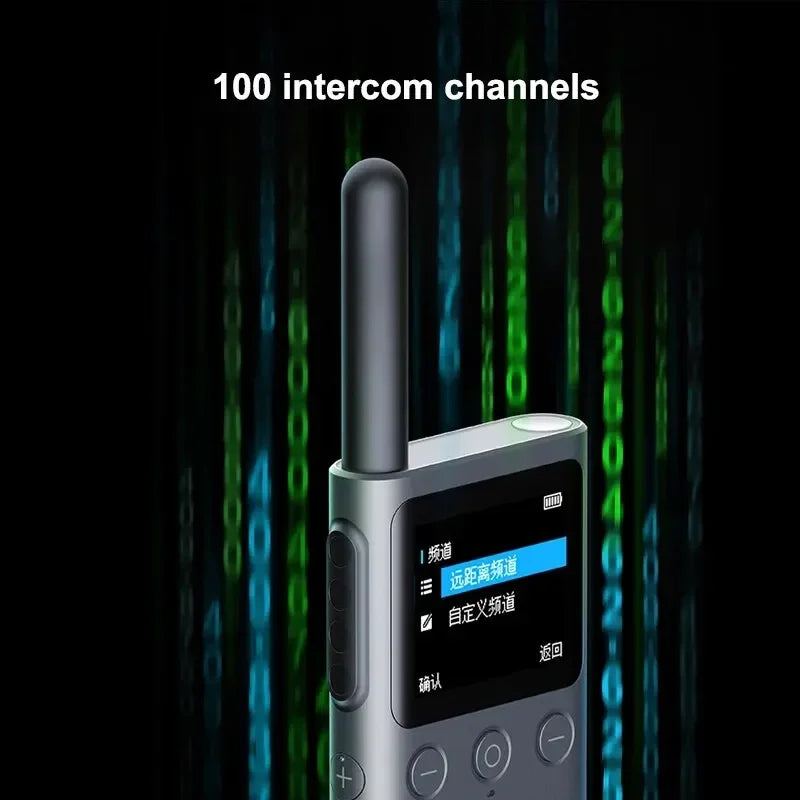

100 intercom channels.Reject serial frequency interference

Xiaomi intercom 2S can set up up to 100 intercomchannels, And with an independent sub-sound code,it can be greatly reduced. String channel interference

improves communication experience.

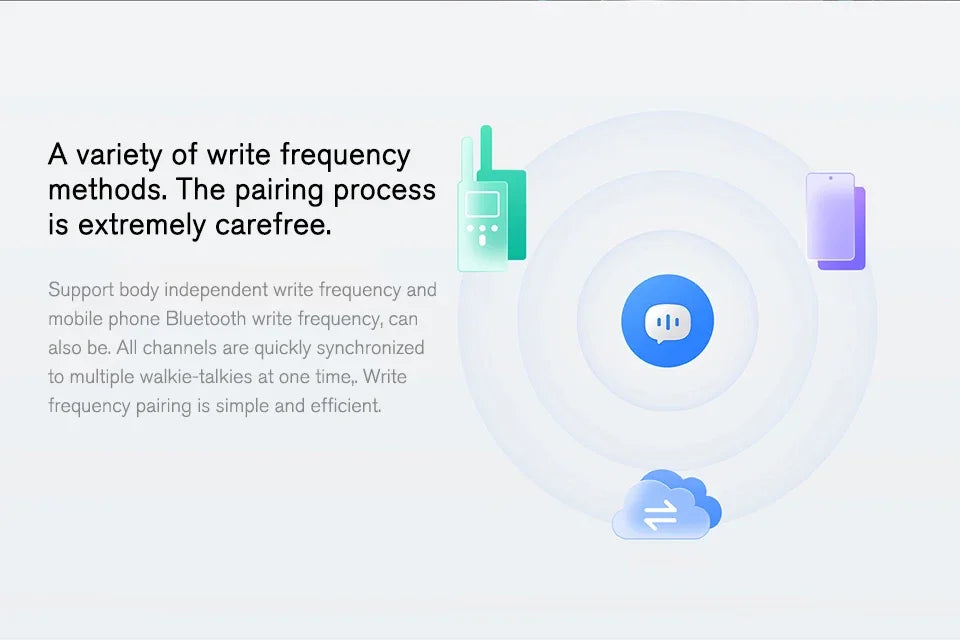

A variety of write frequencymethods. The pairing processis extremely carefree.

Support body independent write frequency andmobile phone Bluetooth write frequency, canalso be. All channels are quickly synchronizedto multiple walkie-talkies at one time, Writefrequency pairing is simple and efficient.

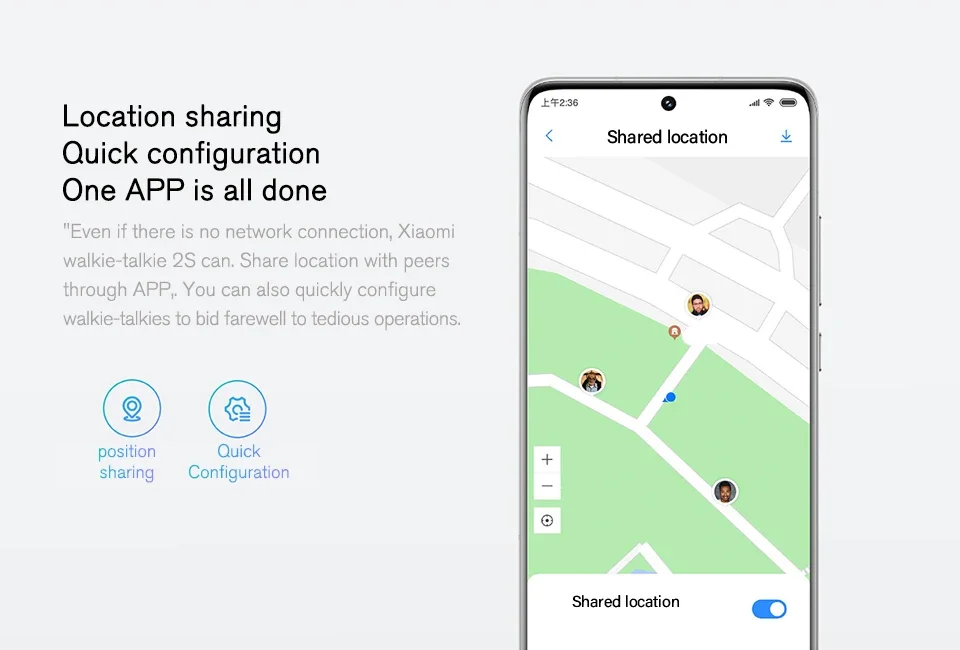

Location sharingQuick configurationOne APP is all done

"Even if there is no network connection, Xiaomiwalkie-talkie 2S can. Share location with peersthrough APP, You can also quickly configurewalkie-talkies to bid farewell to tedious operations.

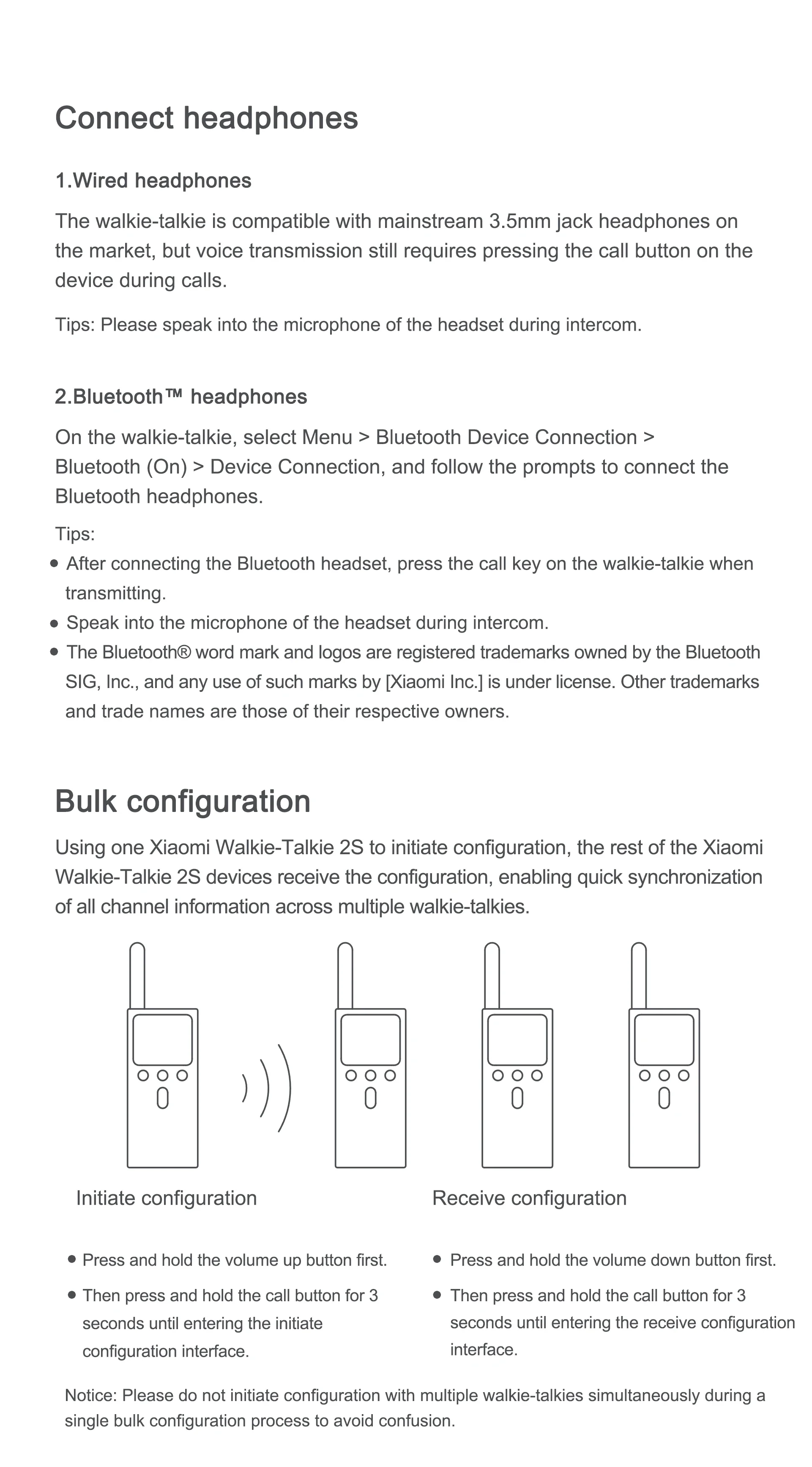

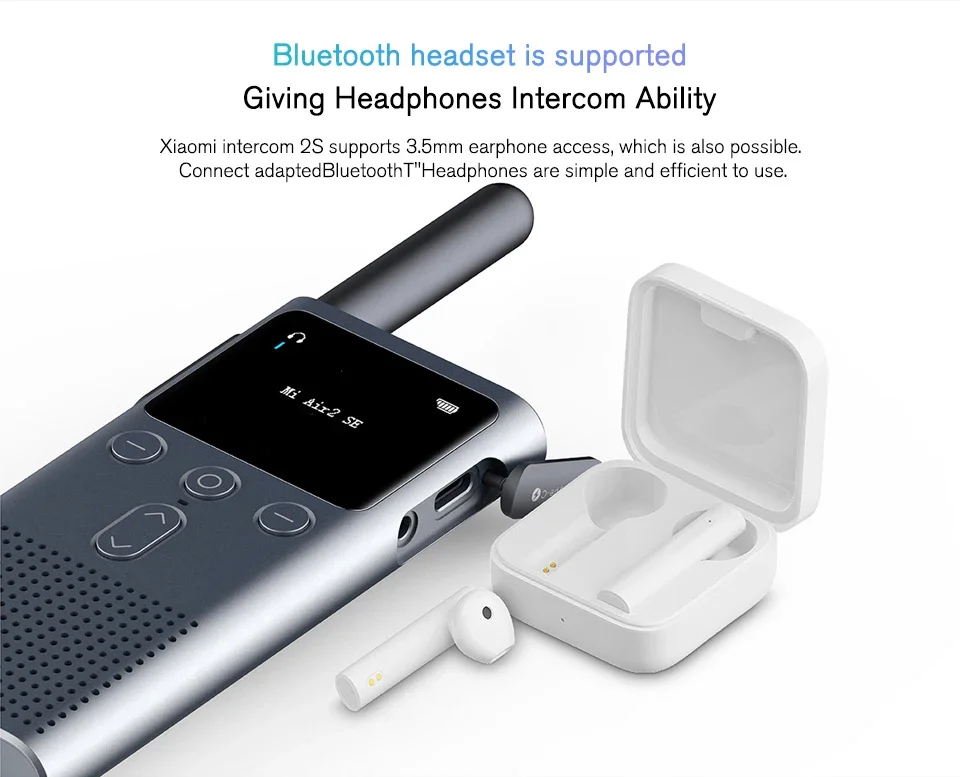

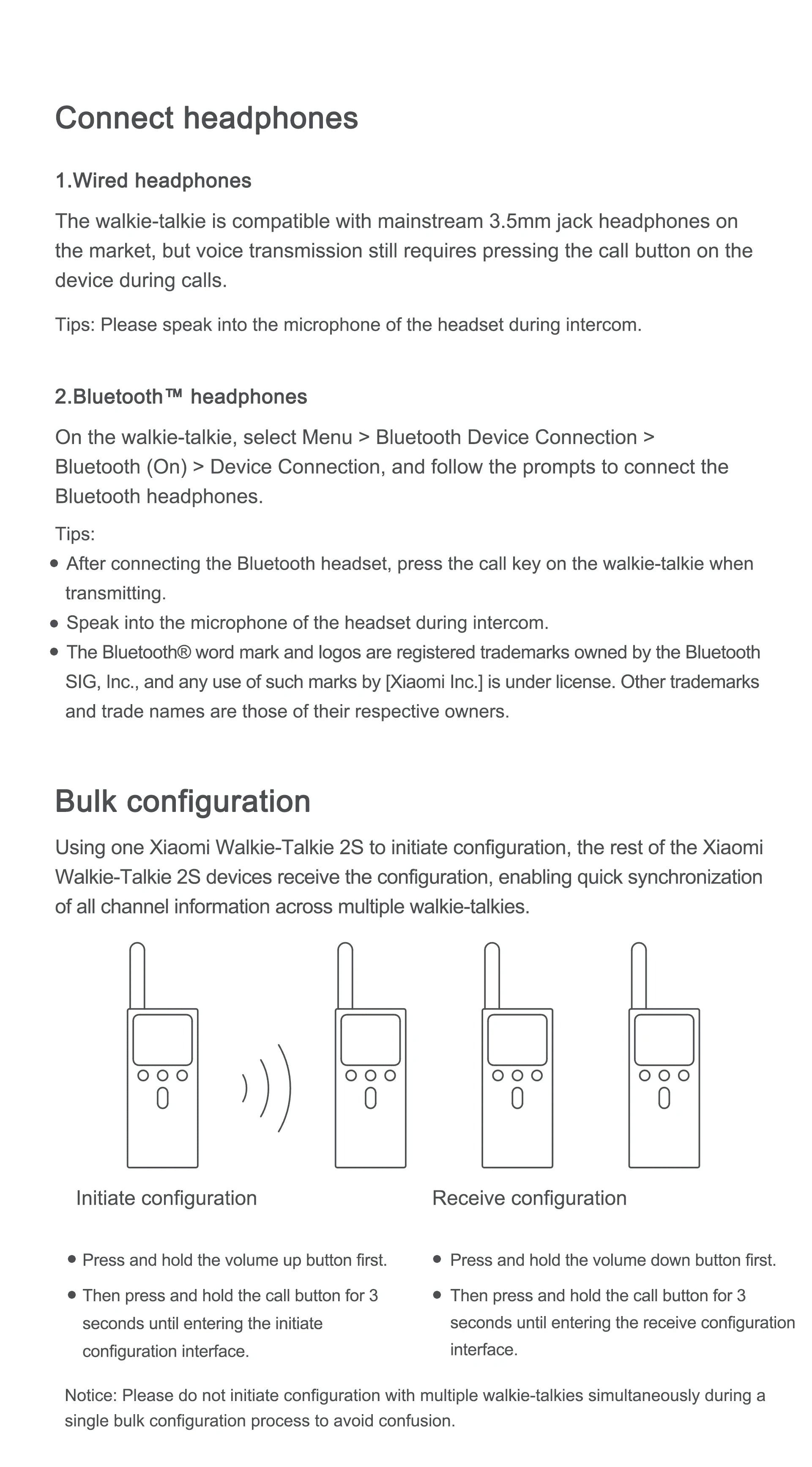

Bluetooth headset is supportedGiving Headphones Intercom Ability

Xiaomi intercom 2S supports 3.5mm earphone access, which is also possible.

Connect adaptedBluetoothT"Headphones are simple and efficient to use.

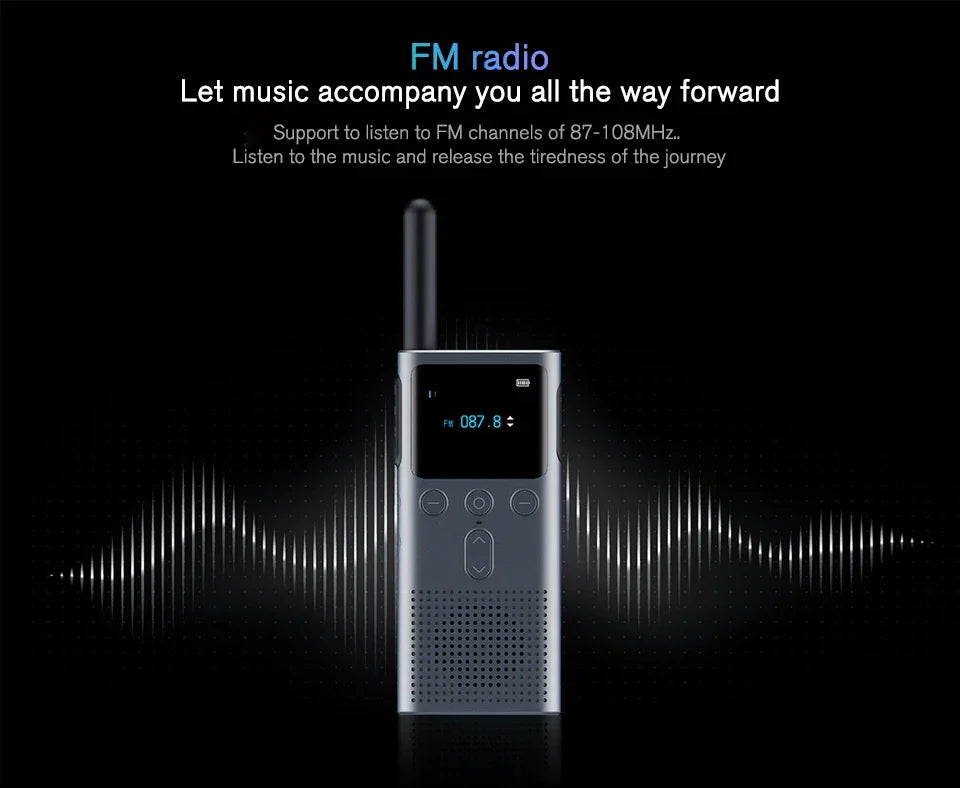

FM radioLet music accompany you all the way forward

Support to listen to FM channels of 87-108MHz.Listen to the music and release the tiredness of the journey

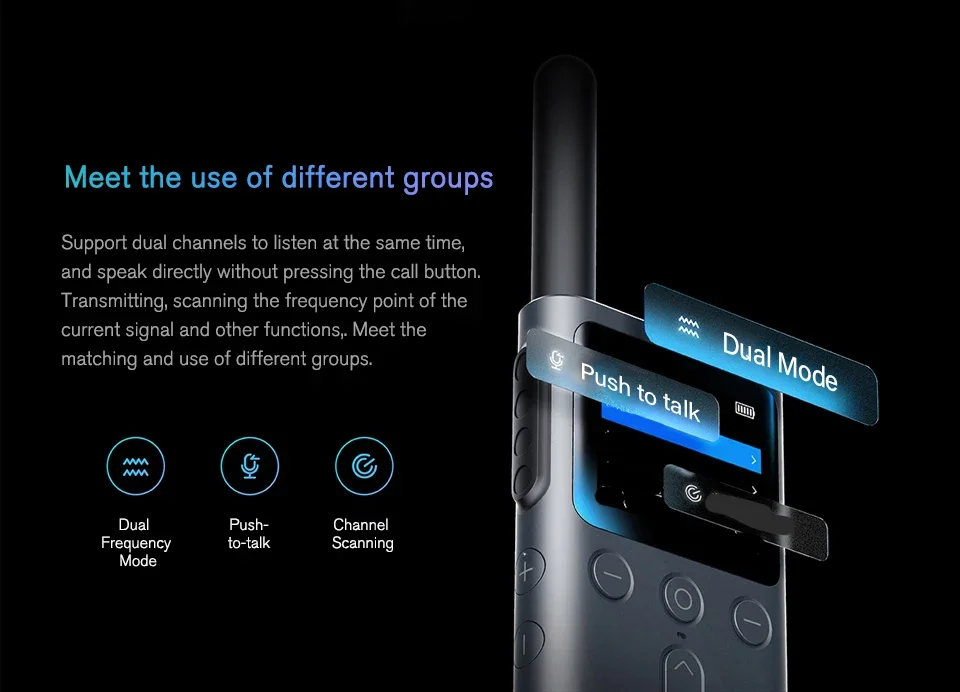

Meet the use of different groups

Support dual channels to listen at the same time,and speak directly without pressing the call button.Transmitting, scanning the frequency point of thecurrent signal and other functions,. Meet thematching and use of different groups.

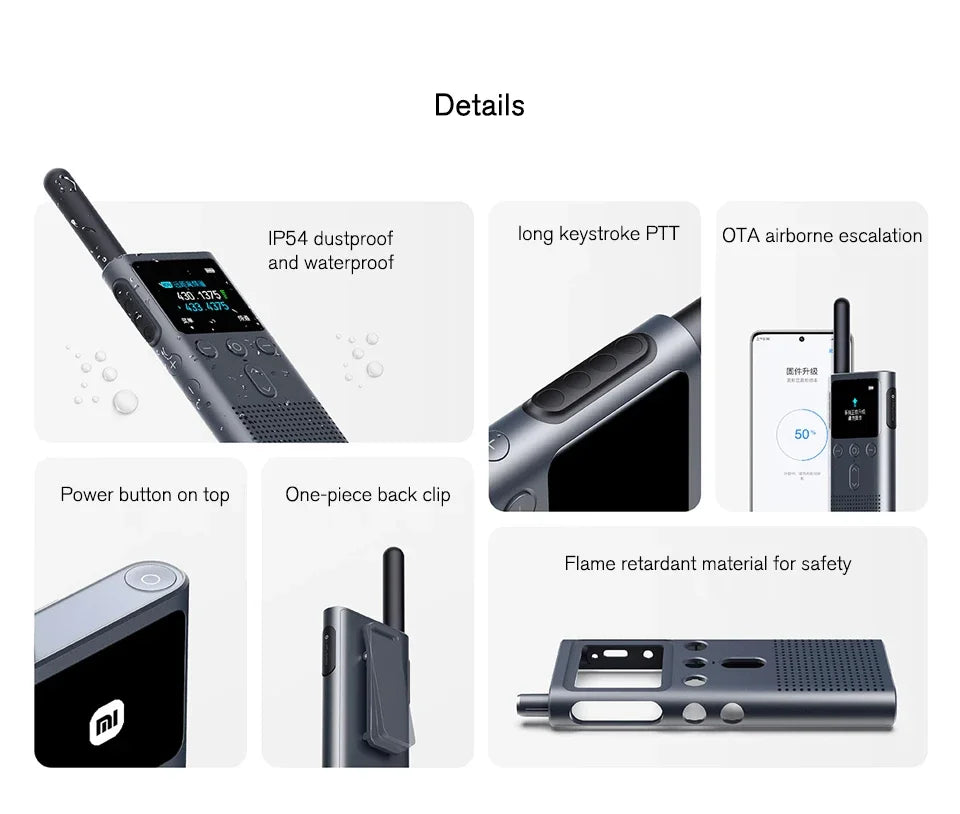

Details

IP54 dustproof and waterproof

long keystroke PTT

OTA airborne escalation

Power button on top

One-piece back clip

Flame retardant material for safety

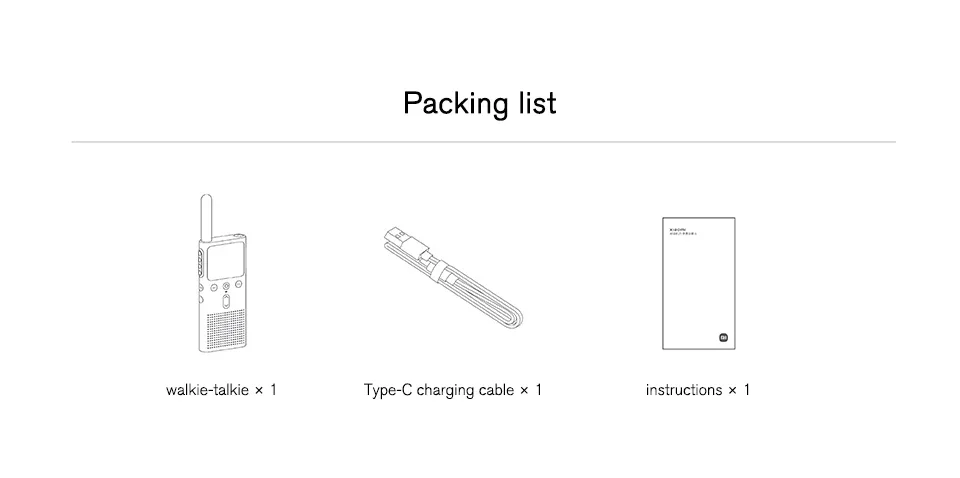

Packing list

walkie-talkie x1

Type-C charging cable x 1

instructions x1

FQA:

Q: Do you need a license to use 2s?

A: Do not need, buy can be used directly.

Q: Can we get a signal in the basement of the construction site?

A: You can answer clearly.

Q:Can it be used in Europe?

A:Yes, we just got back from Europe. We're using 11 units in a row.
