SPECIFICATIONS

Battery Included: No

Brand Name: YAESU

Certification: CE,FCC

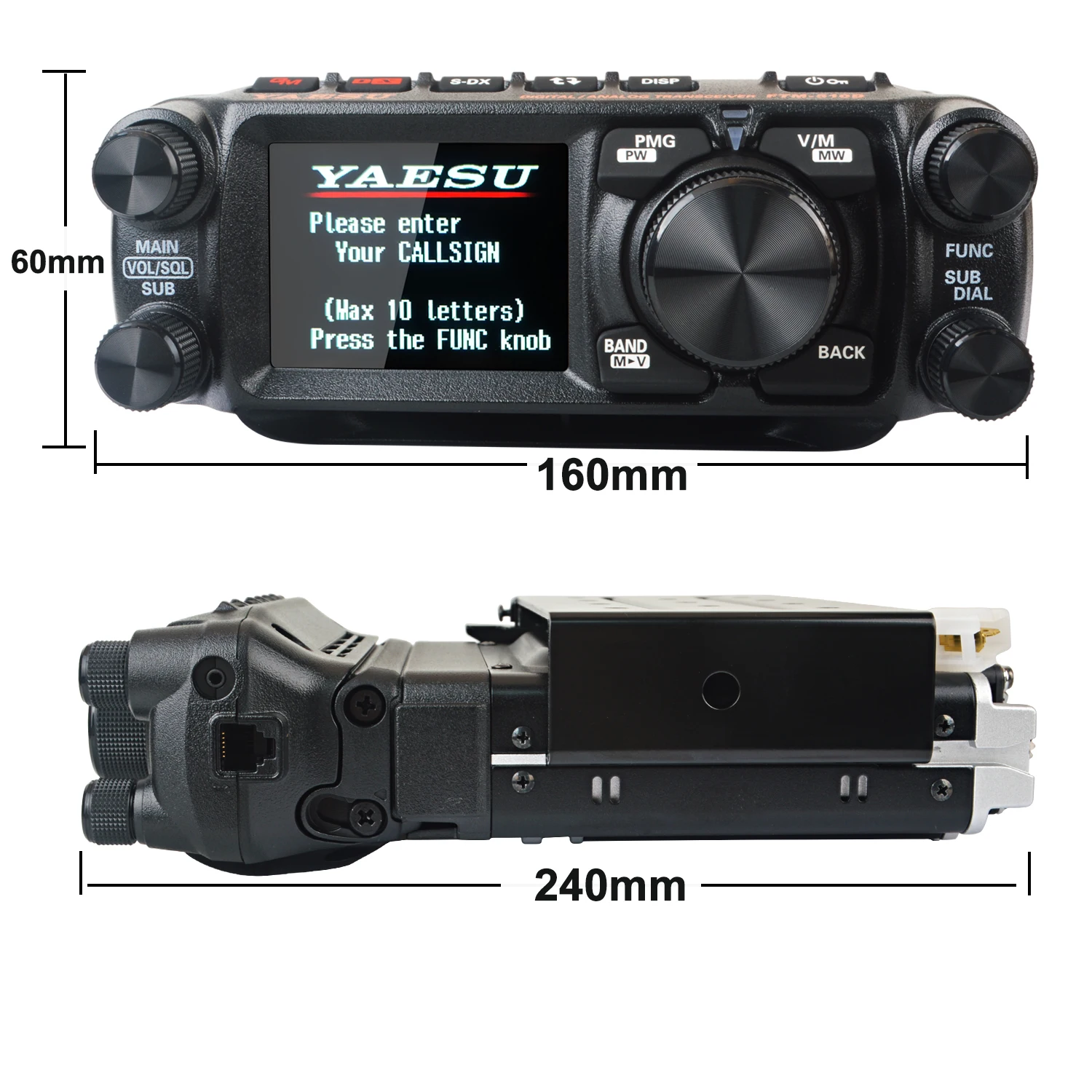

Dimensions: 156*64*58.6mm

Frequency Range: 108-136mhz,144-148MHz,430 - 440 MHz

High-concerned chemical: None

Is_Display: Yes

Material: Metal

Maximum Range: >50km

Model Number: FTM-510D

Origin: Jp(origin)

Output Power(w): >50w

Storage Channel: 1103

Use: Motor vehicle

Walkie Talkie Type: Car

Waterproof / Water-Resistant: No

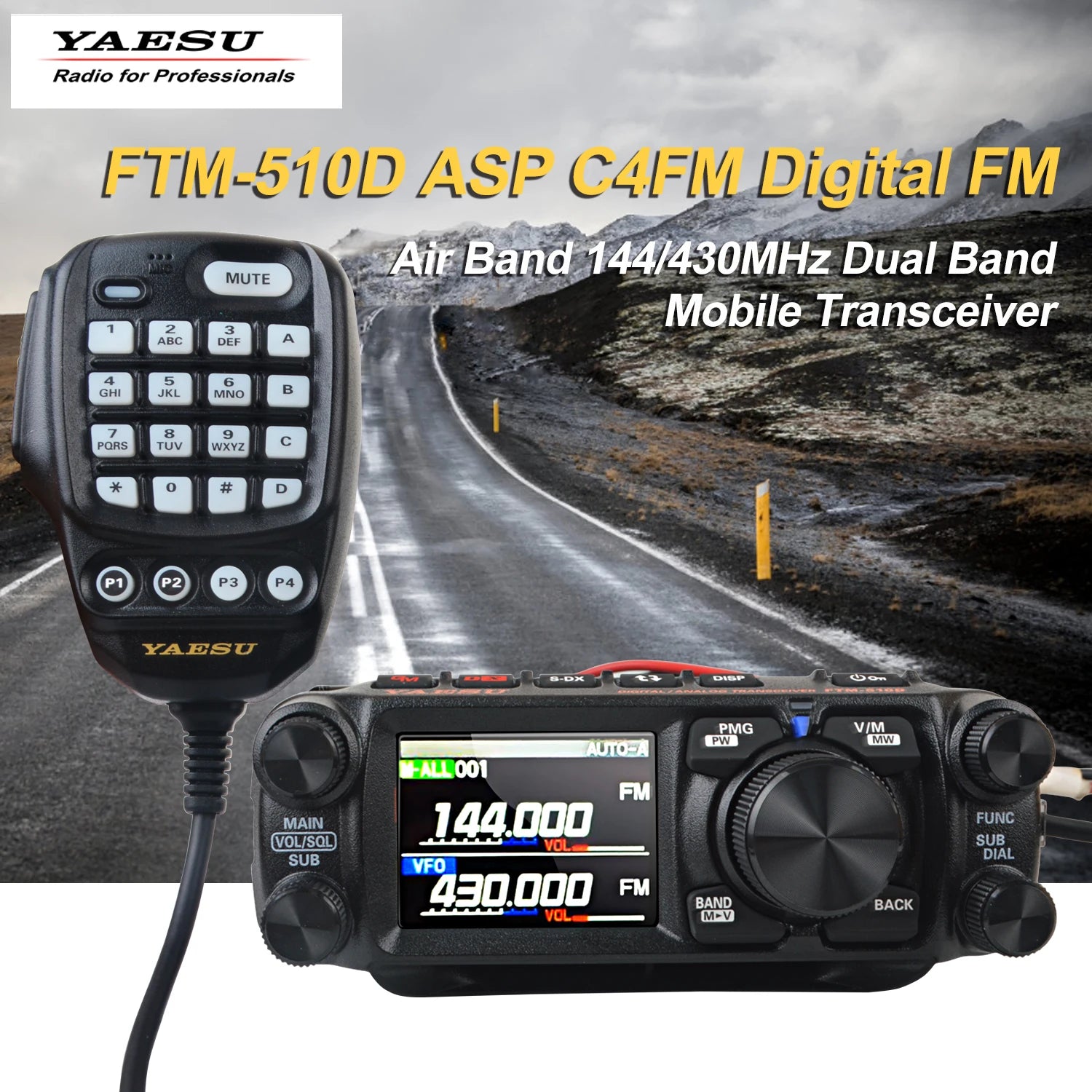

Walkie Talkie Yaesu FTM-510D ASP C4FM/FM 55/50W 144/430mhZ Dual Band Mobile Transxciver with Super-DX and ASP

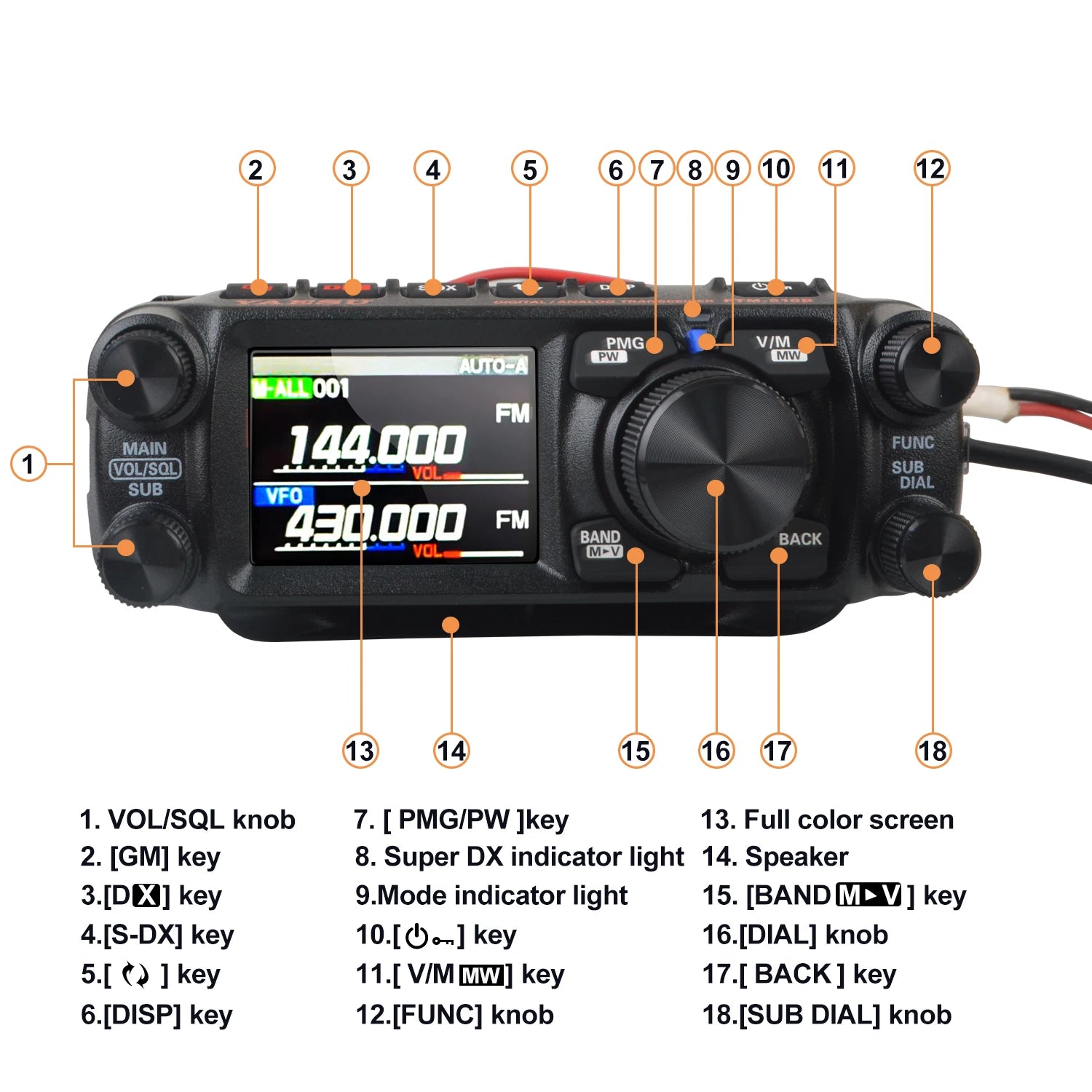

Photos:

Features:

1. Equipped with a front speaker. The AESS dual Speaker system uses the main body speaker in combination the front panel speaker to provide clear audio quality and spacious 3D Sound.

2. Total audio output is 9W (3W:Main body,6W: control head) High sound quality,loud speakers

3. The latest operating system E2O-IV (Easy to Operate-IV) affords a new operating feeling with dual mobile “Touch & Go”and “Search & Go”functions

4. The PMG(Primary Memory Group Activity Monitor) function can register up to 5 channels with the receive frequencies of the VFO or memory channels by simply pressing and hold the PMG key. Press the PMG Key to scan the registered frequencies and display the reception status (Signal strength)in a real time bar graph.

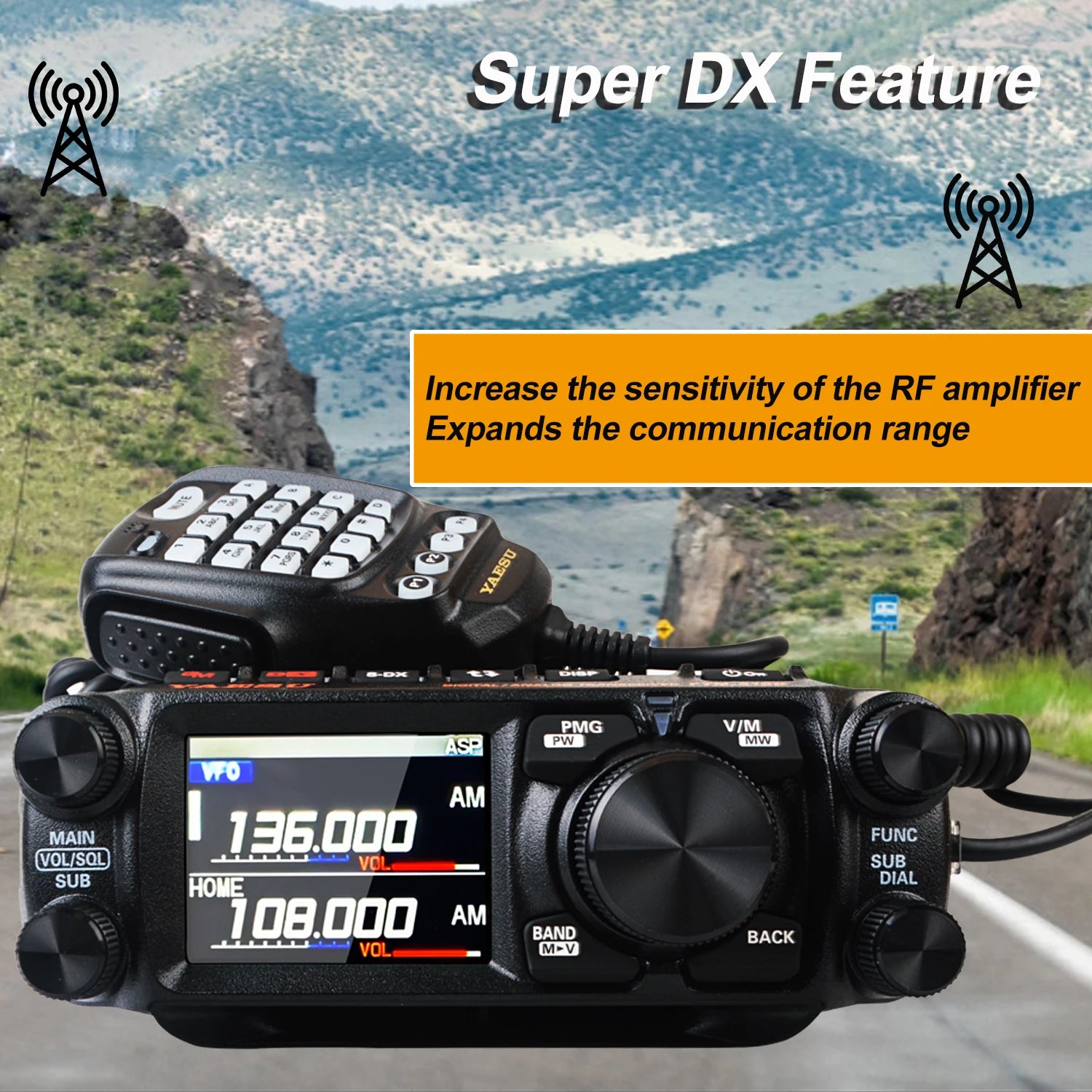

5. The super DX function increases the sensitivity of the RF amplifier when the received signal is weak , and expands the communication range.

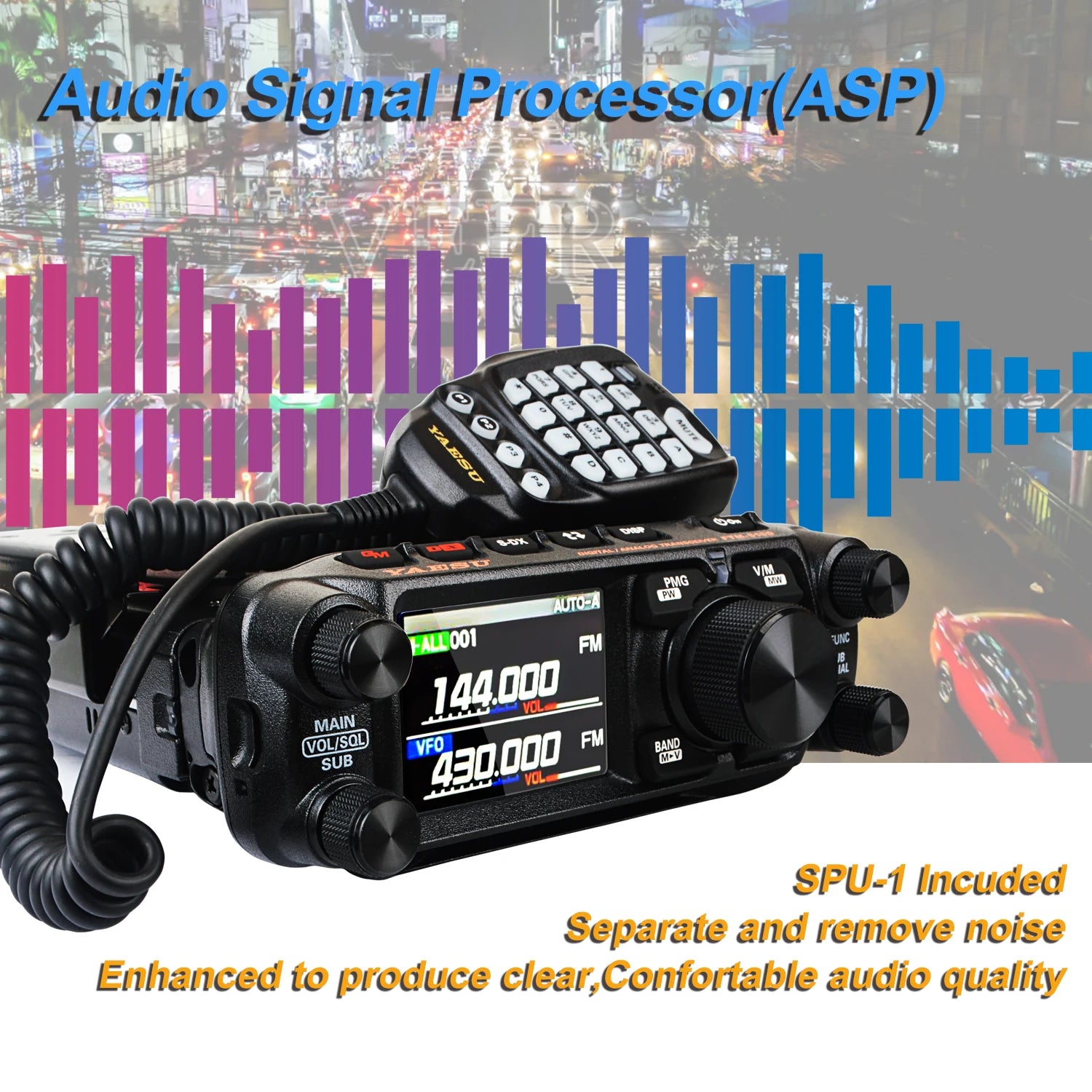

6. Installing the Audio Digital signal processing Unit “SPU-1”,Permits digitally processing the received audio signal to separate and remove noise. The voice can be enhanced to produce clear,comfortable,audio quality. Even weak signals that were previously inaudible due to noise can now be received clearly.

7. Digital communication using Yaesu (C4FM (Quatemary FSK)system)

8. Simultaneous reception of two separate frequencies, on different bands, or within the same band (V+V/U+U/V+U/U+V).

9. Equipped with AMS (Automatic Mode Select)feature that automatically selects the analog FM or the C4FM digital modes,according to the signal of the other station.

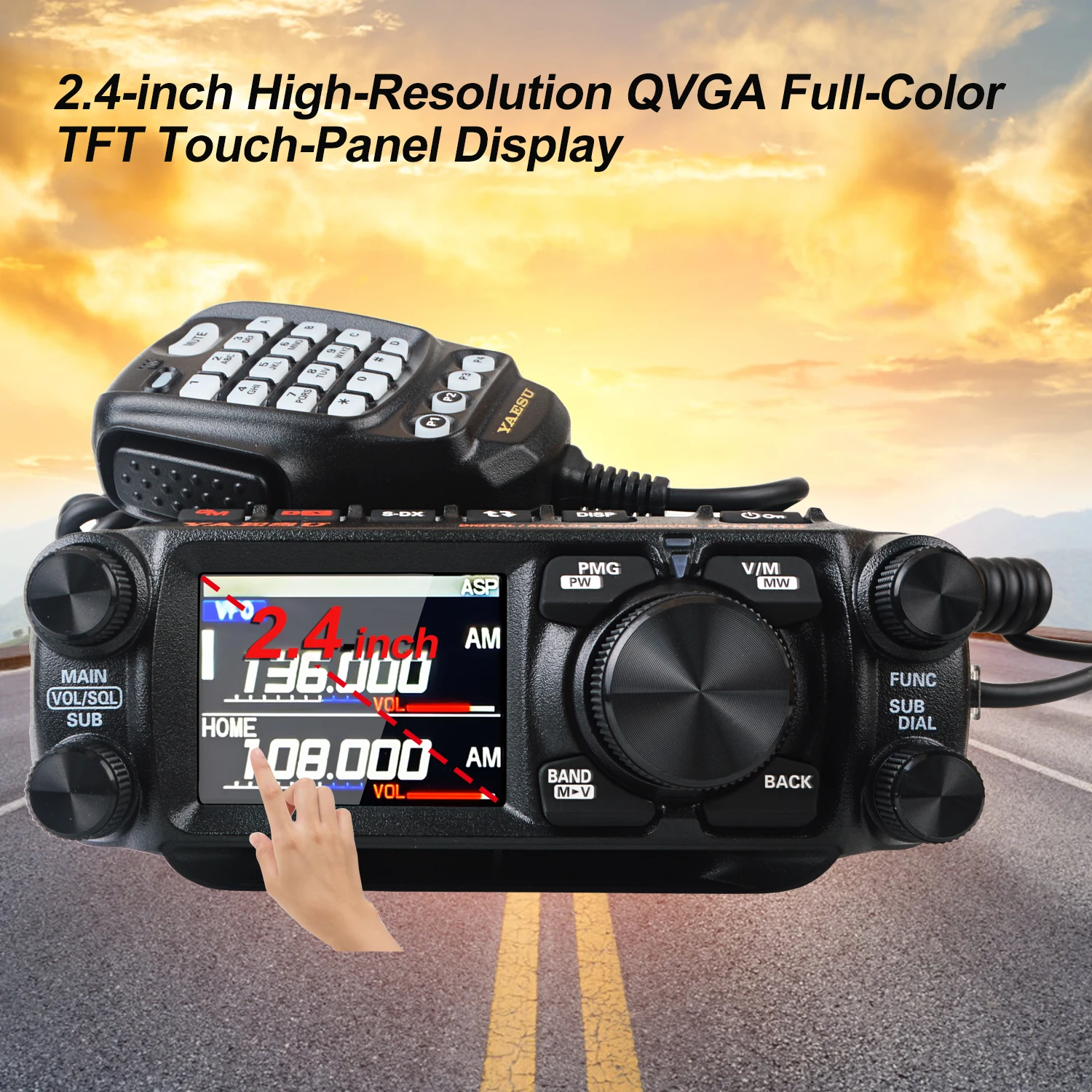

10. The 2.4-inch High-Resolution QVGA Full-color TFT touch-panel display shows the communication status and settings of the FTM-510DR/DE in a straightforward manner,achieving excellent operability.

11. The CFL(Custom Function List) can be personalized by registering frequently used functions (up to 8) from the 127 items Setup menu.

12. MAG(Memory Channel Band Auto Grouping).The memory channels are automatically categorized in each band,so that memory channels can be easily and quickly recalled.

13. High-resolution band scope that displays 61 channels

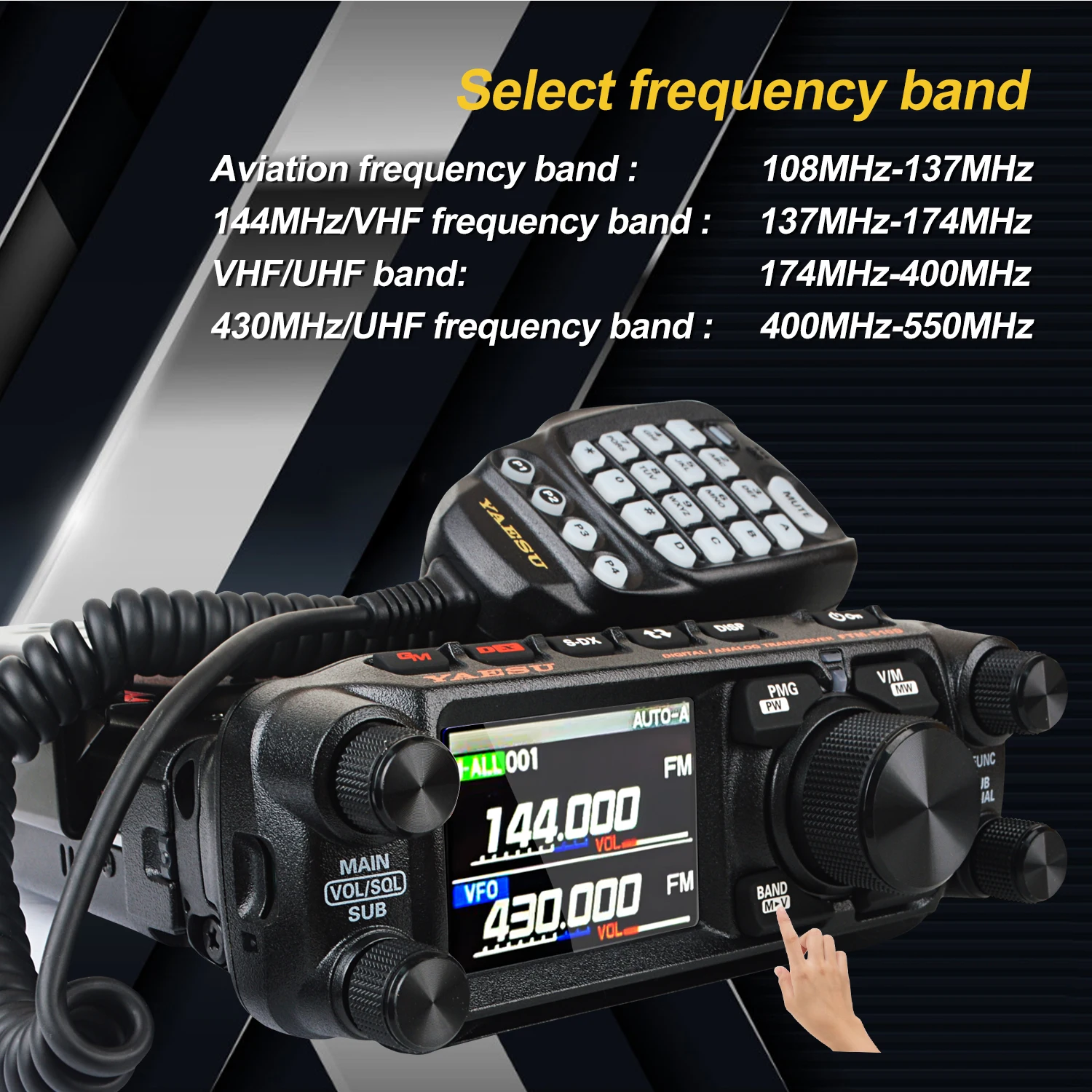

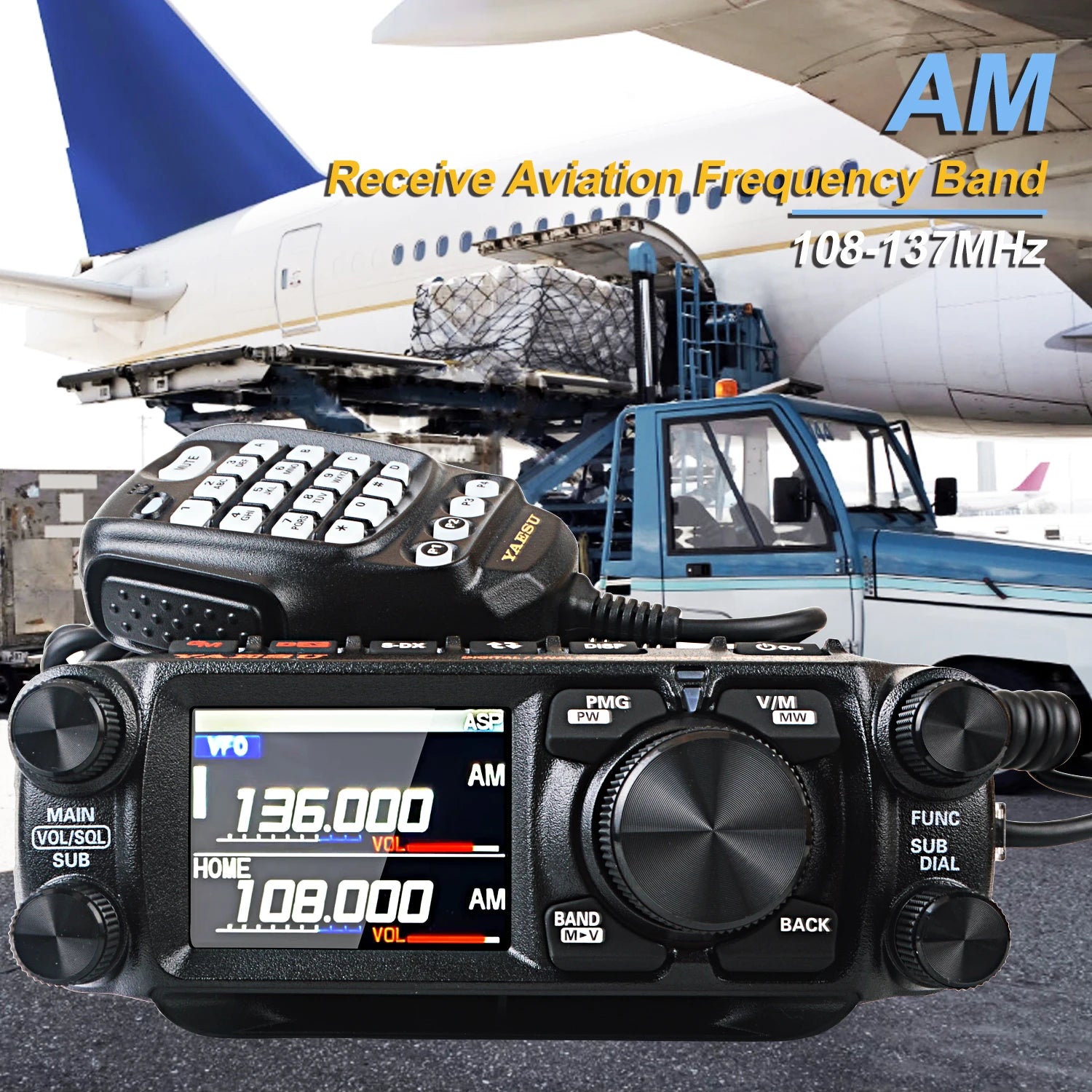

14. Wide-band reception (108MHz to 550MHz)

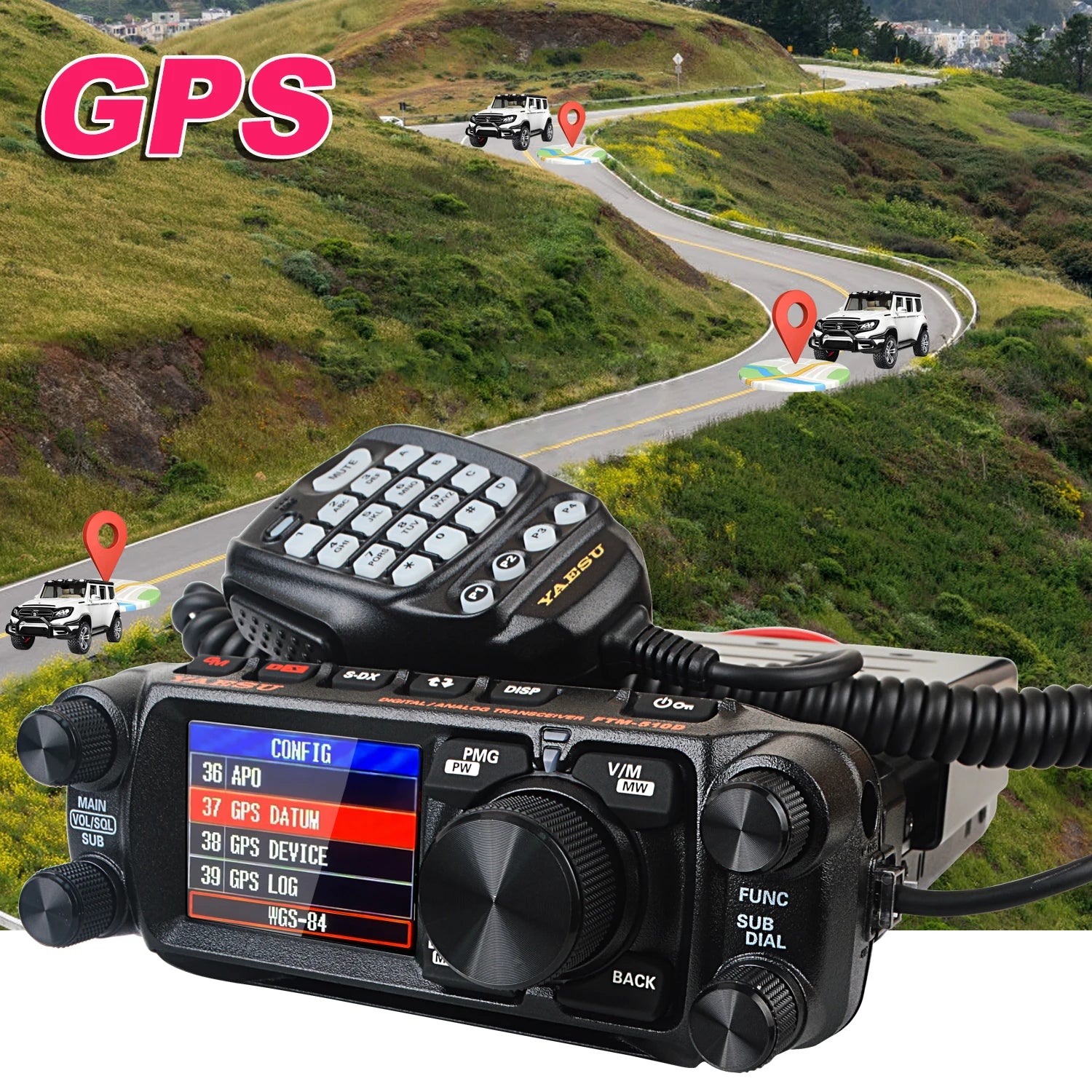

15. Built-in GPS unit permits display of the current location and heading information

16. Large-capacity 1103 memory channels

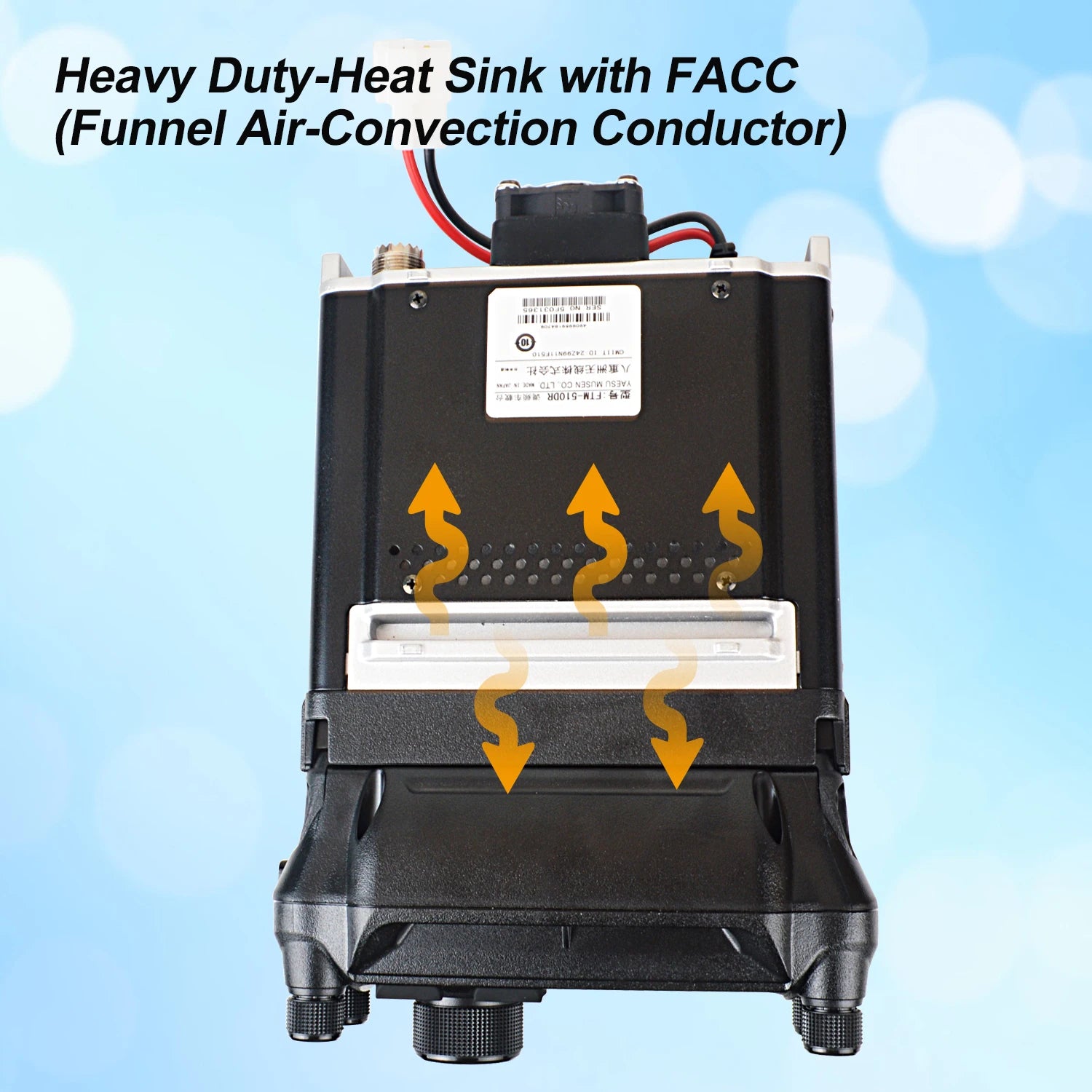

17. Heavy duty-Heat sink with FACC(Funnel air-convection conductor)

18. Compatible with micro-SD memory Card

Specifications:

Specifications are subject to change without notice,and are guaranteed within the amateur bands only.Frequency ranges and functions will vary according to transceiver version.

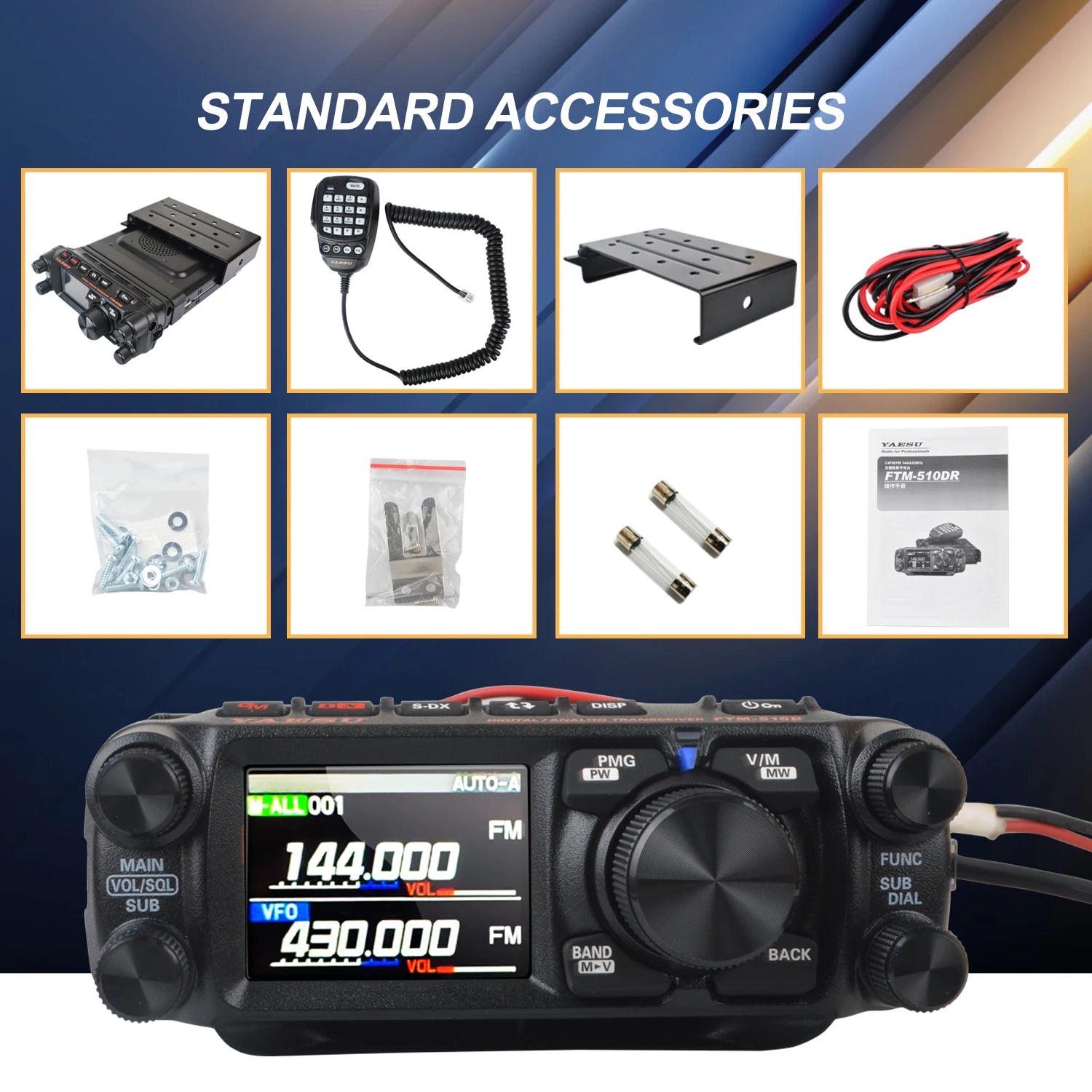

Package Contents of Each Unit:

1×FTM-510D Radio Body

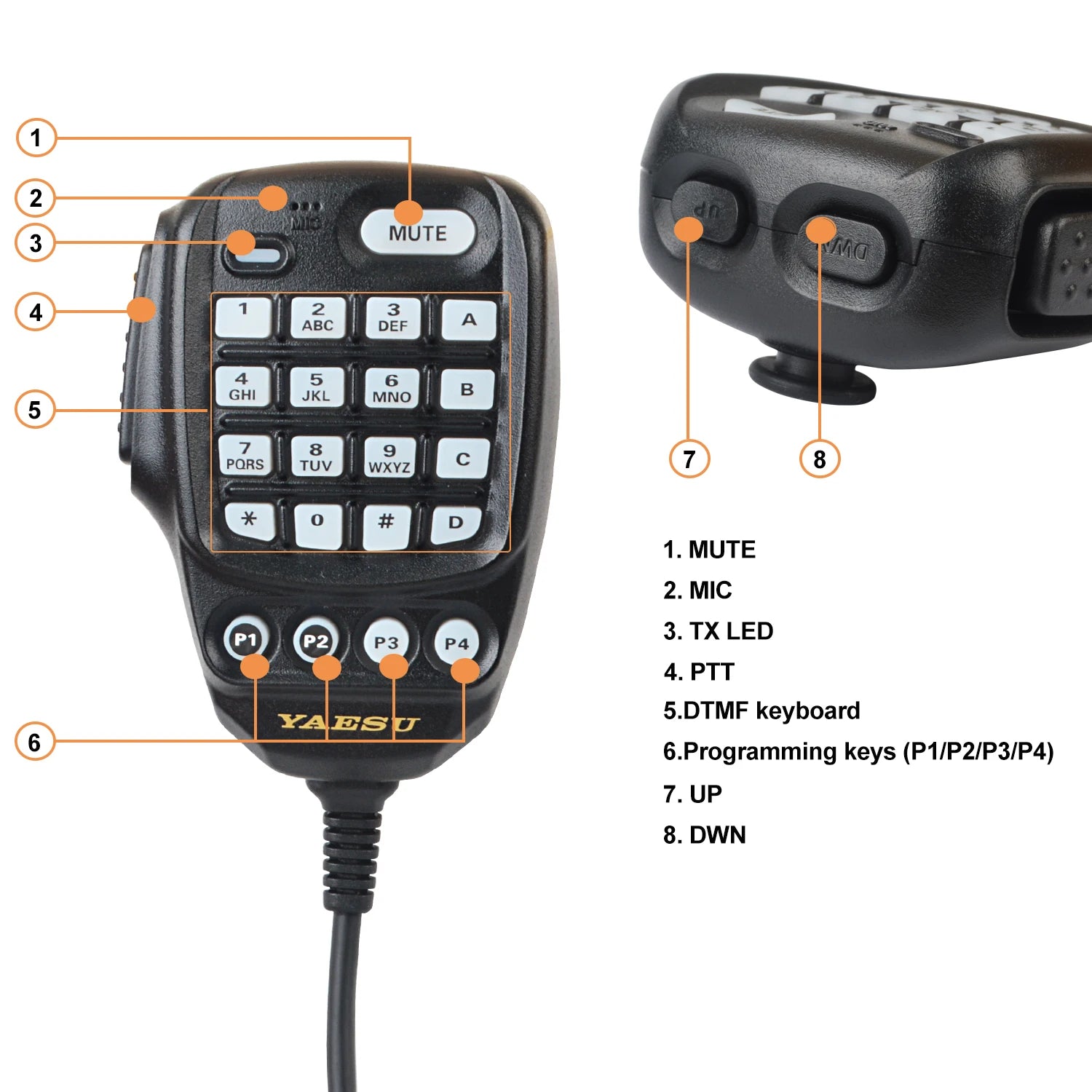

1×SSM-85D DTMF Microphone

1×Bracket for main body

1×DC Power Cable(with Fuse attached)

1×Screw set

1×Microphone clip

2× Spare Fuse 15A

1× User manual
