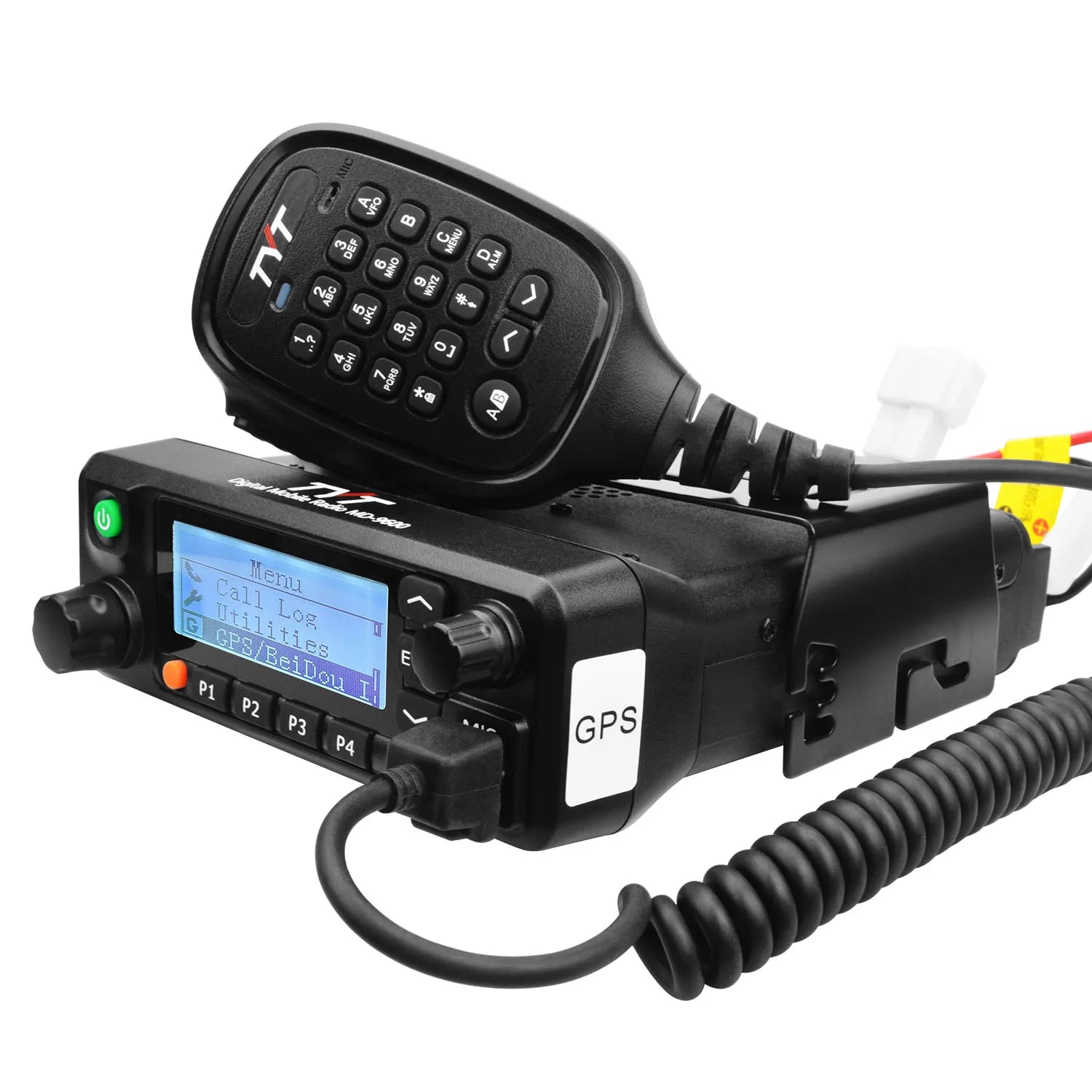

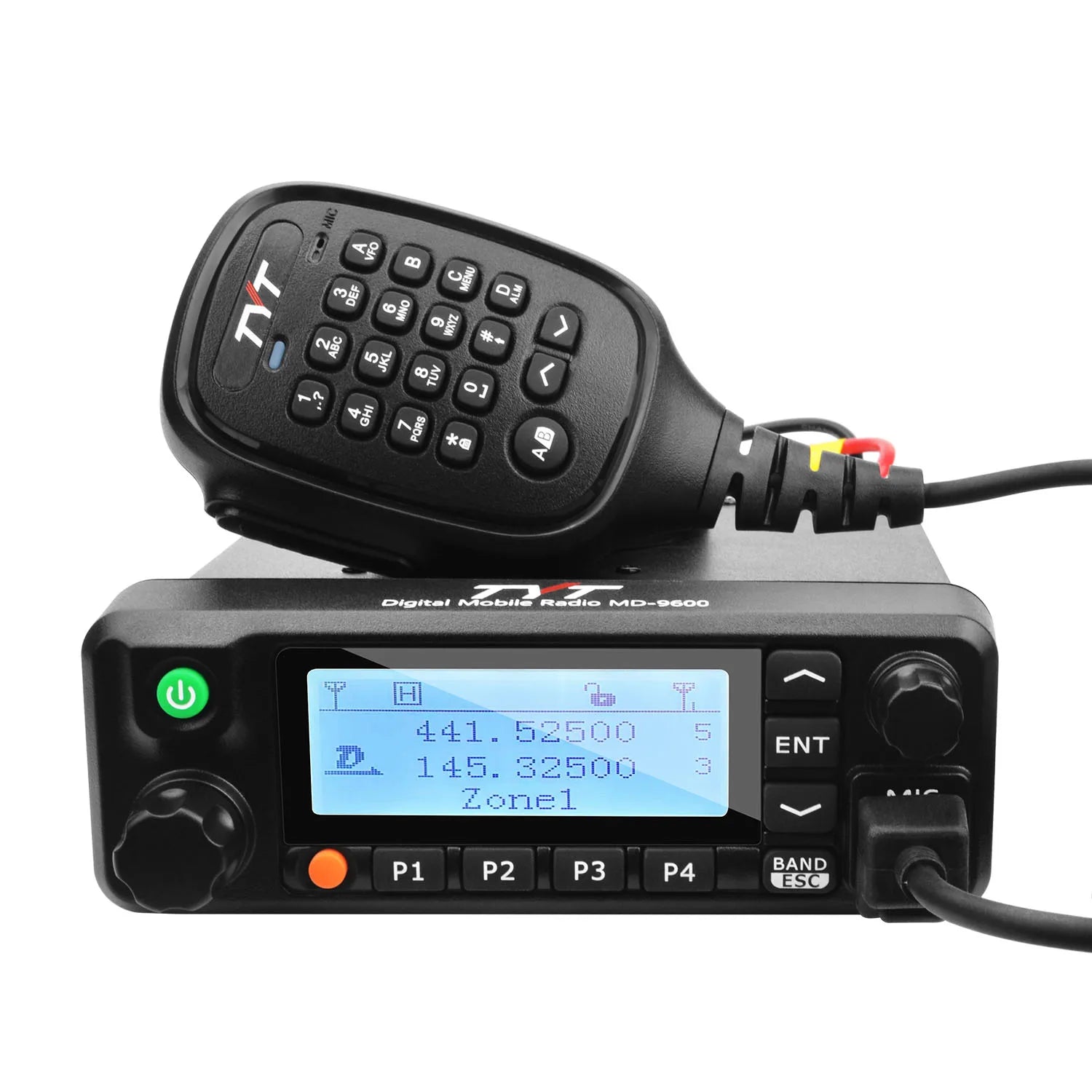

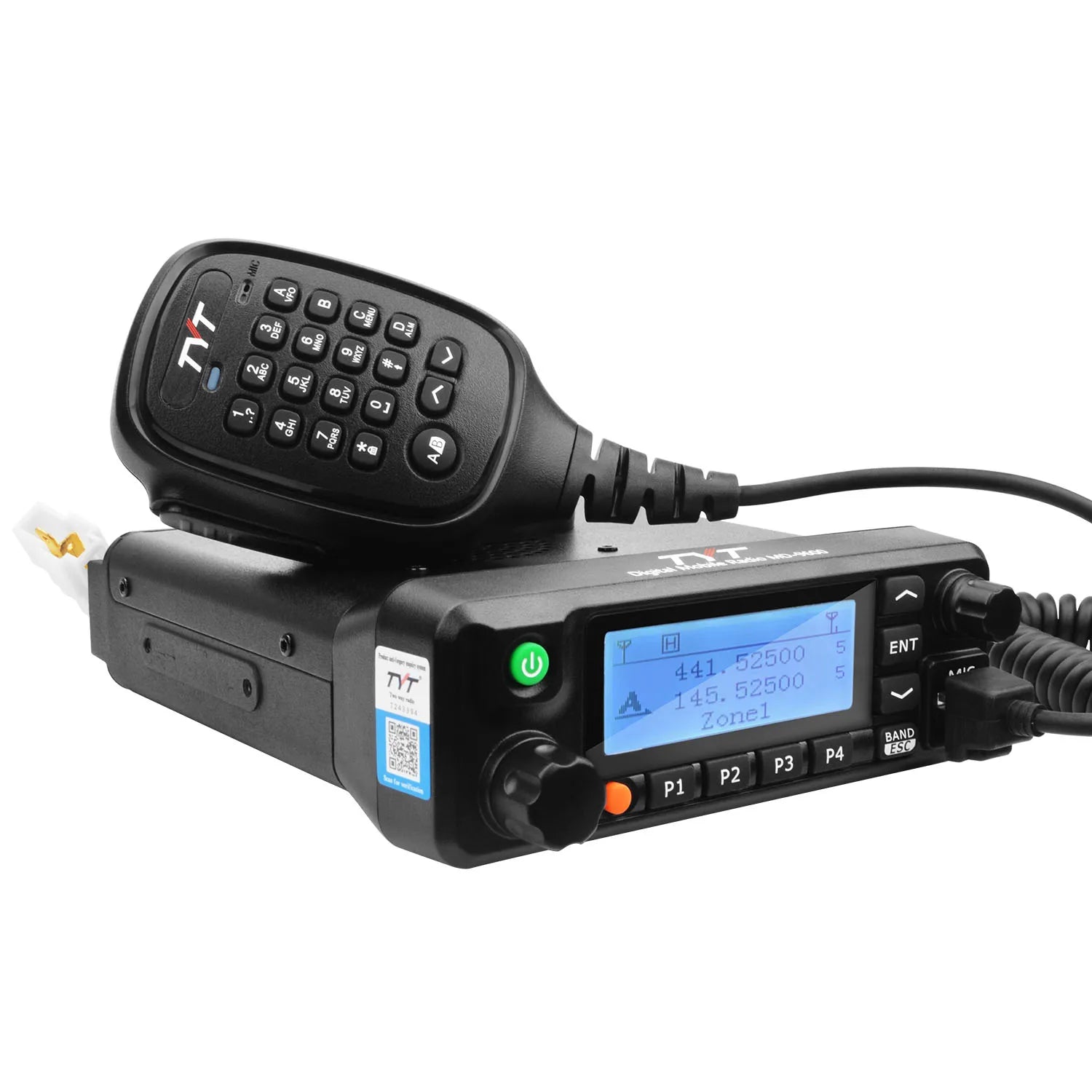

TYT MD-9600 DMR Mobile Radio with GPS | Dual Band VHF UHF 50W Long Range Vehicle Walkie Talkie

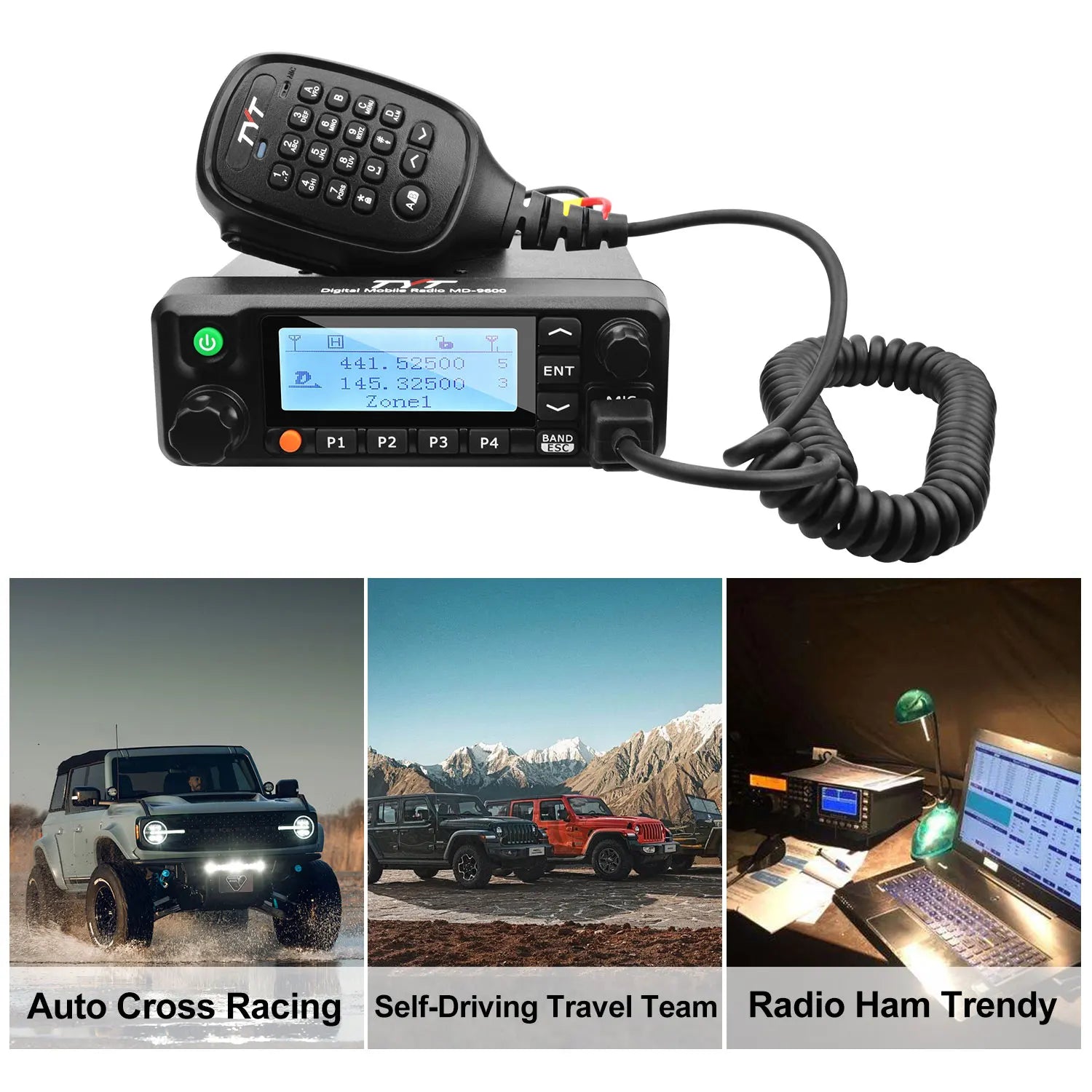

Experience professional-grade communication with the TYT MD-9600 DMR Mobile Radio — designed for drivers, outdoor adventurers, and emergency responders who need clear, reliable, and long-range connectivity. Whether you’re managing logistics, coordinating events, or exploring off-grid, this dual-band powerhouse ensures you stay connected wherever your journey takes you.
Powerful Performance You Can Rely On

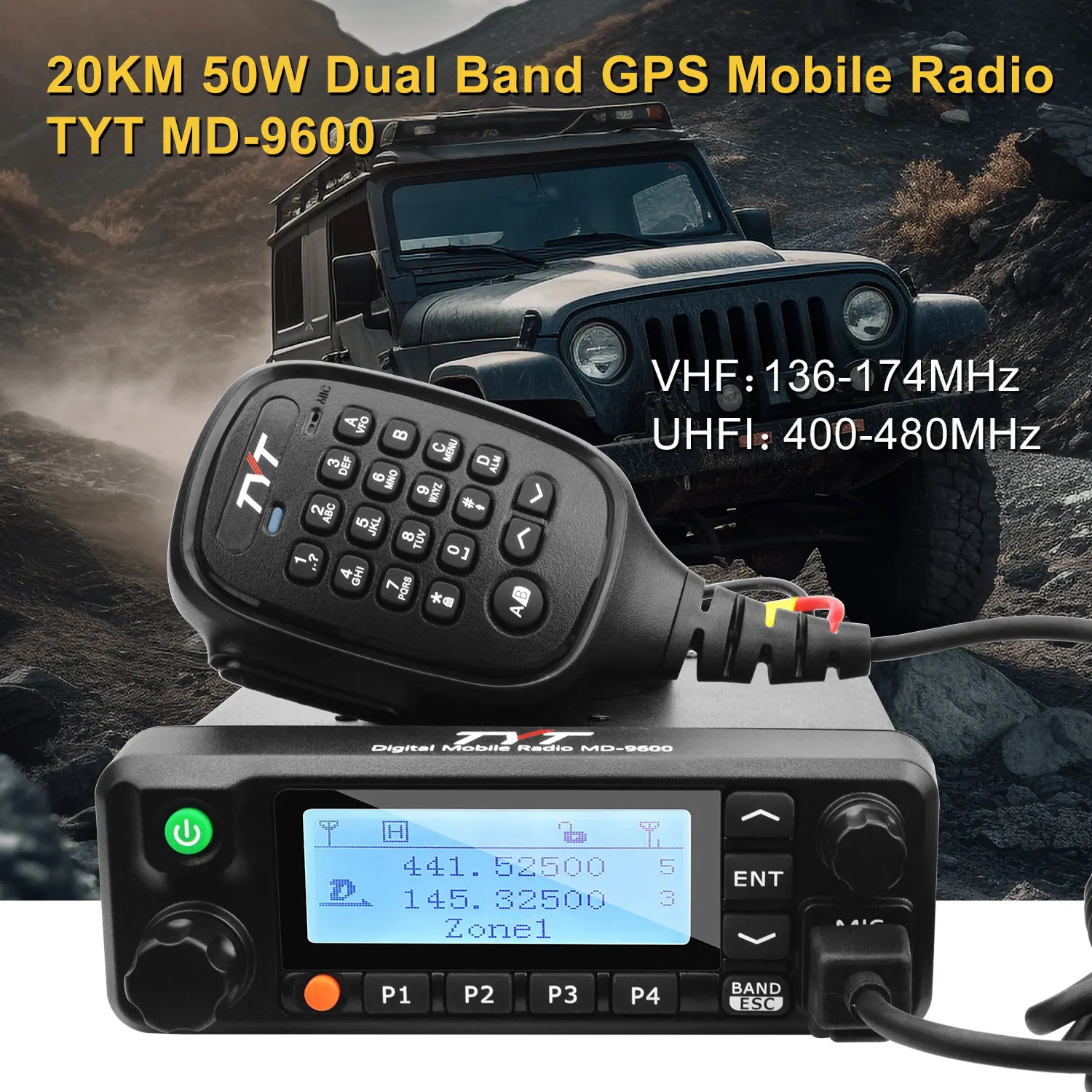

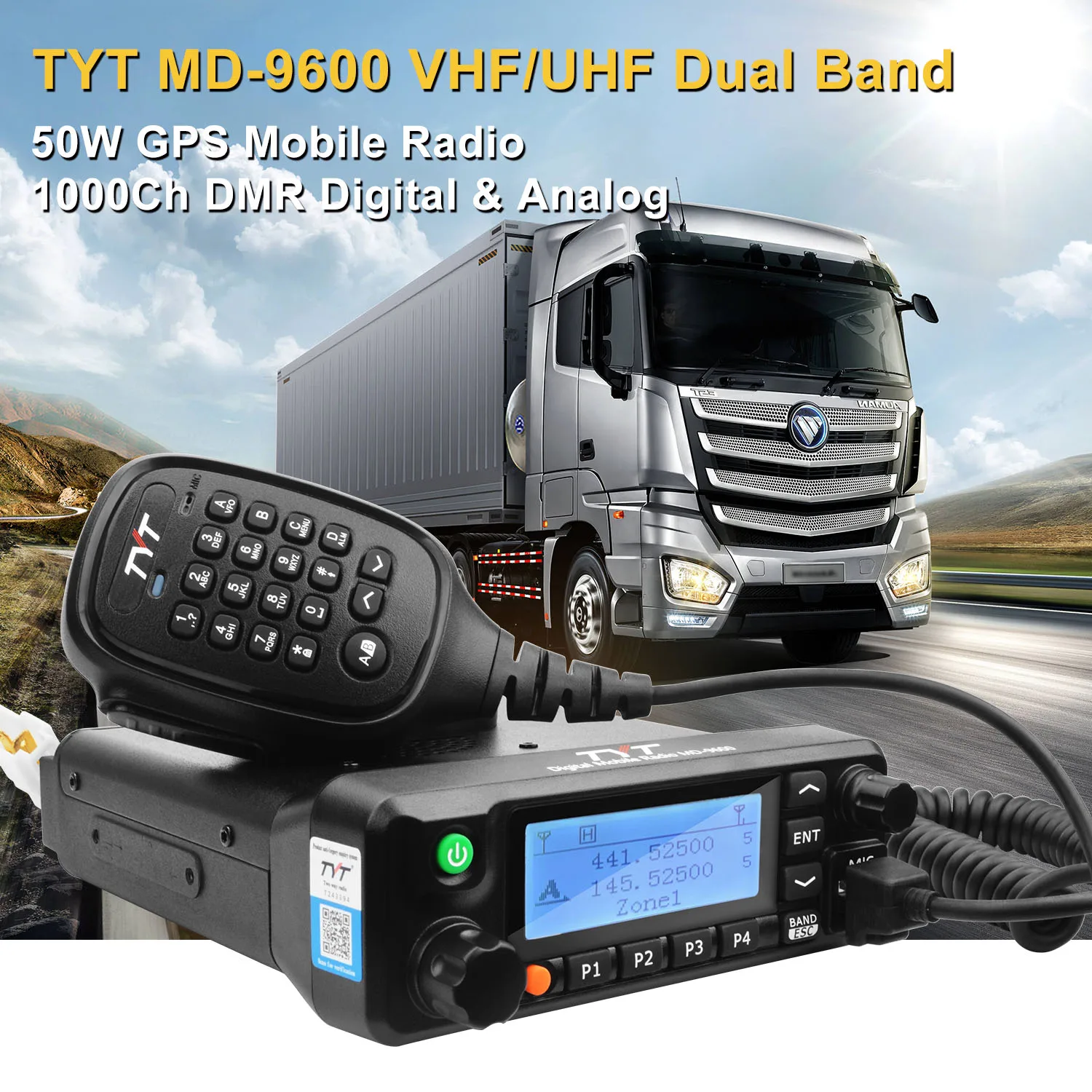

The TYT MD-9600 combines VHF (136–174MHz) and UHF (400–480MHz) frequencies, offering broad coverage and impressive clarity. With up to 50W output power, this radio ensures strong signal transmission even across rugged terrain or dense urban areas. Choose between four adjustable power levels — Low, Mid-Low, Mid, and High — to match your environment perfectly.
Professional Dual Mode Operation
Operate seamlessly in both Digital (DMR) and Analog modes. The Dual Time Slot function allows simultaneous communication, enhancing efficiency during team operations. With 1000 programmable memory channels, you’ll never run out of space to store important frequencies.

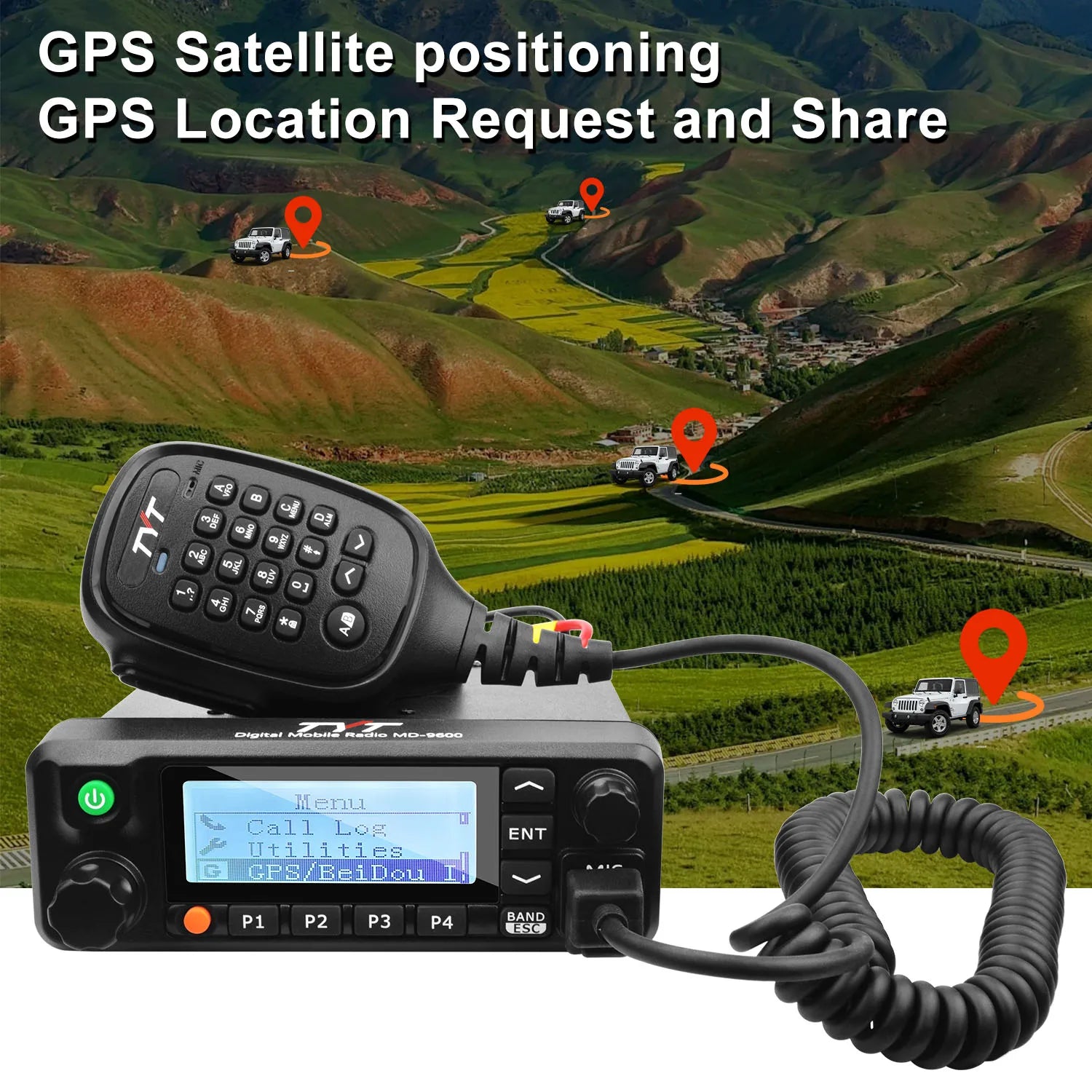

GPS Tracking and Advanced Features
Navigate with confidence using built-in GPS for precise location tracking. Perfect for fleet management, travel safety, or group expeditions. The VOX hands-free operation, 1750Hz tone, and DTMF calling make usage simple and efficient. Plus, enjoy more than 8 hours of voice recording, ideal for replaying key transmissions or maintaining records.
Built for Durability and Comfort

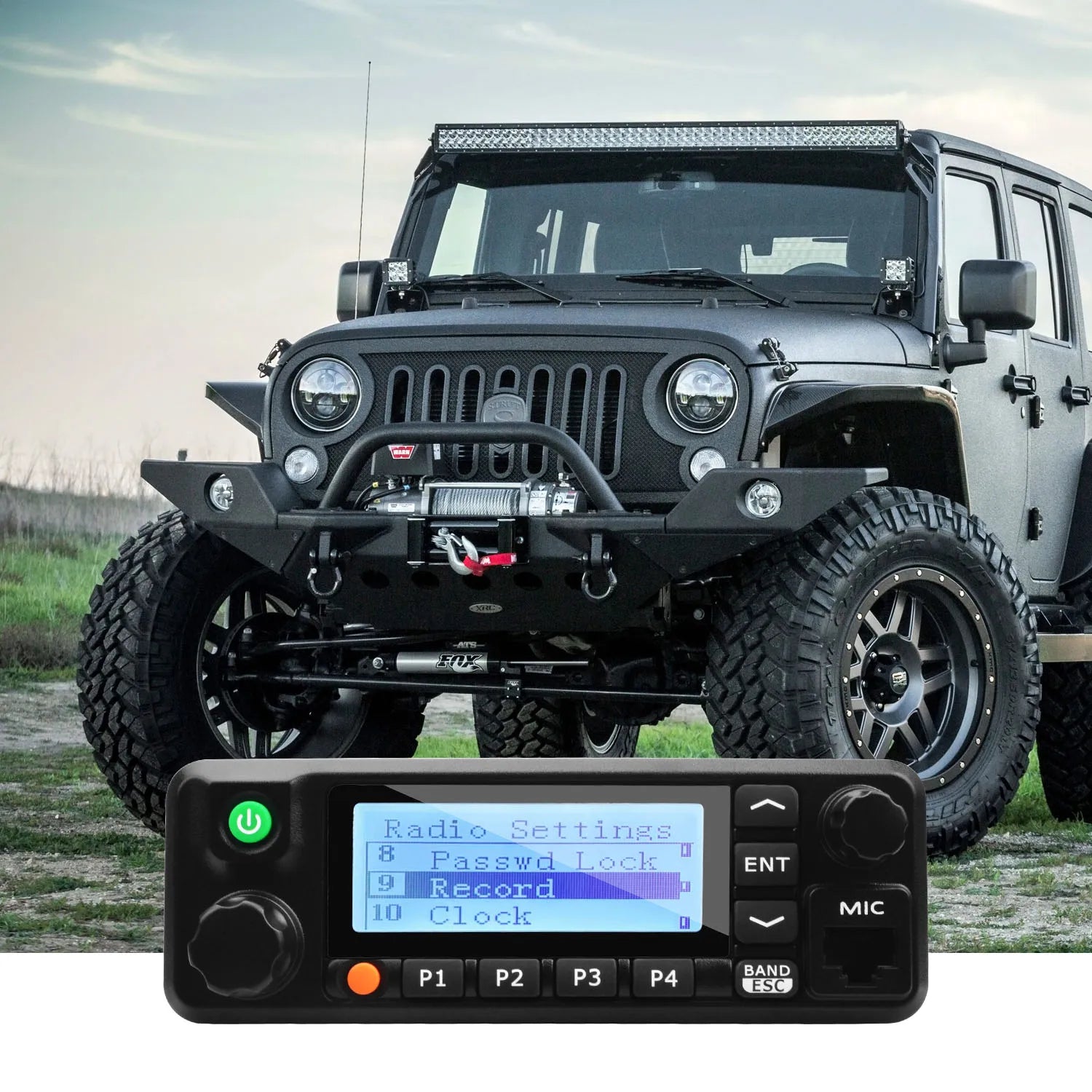

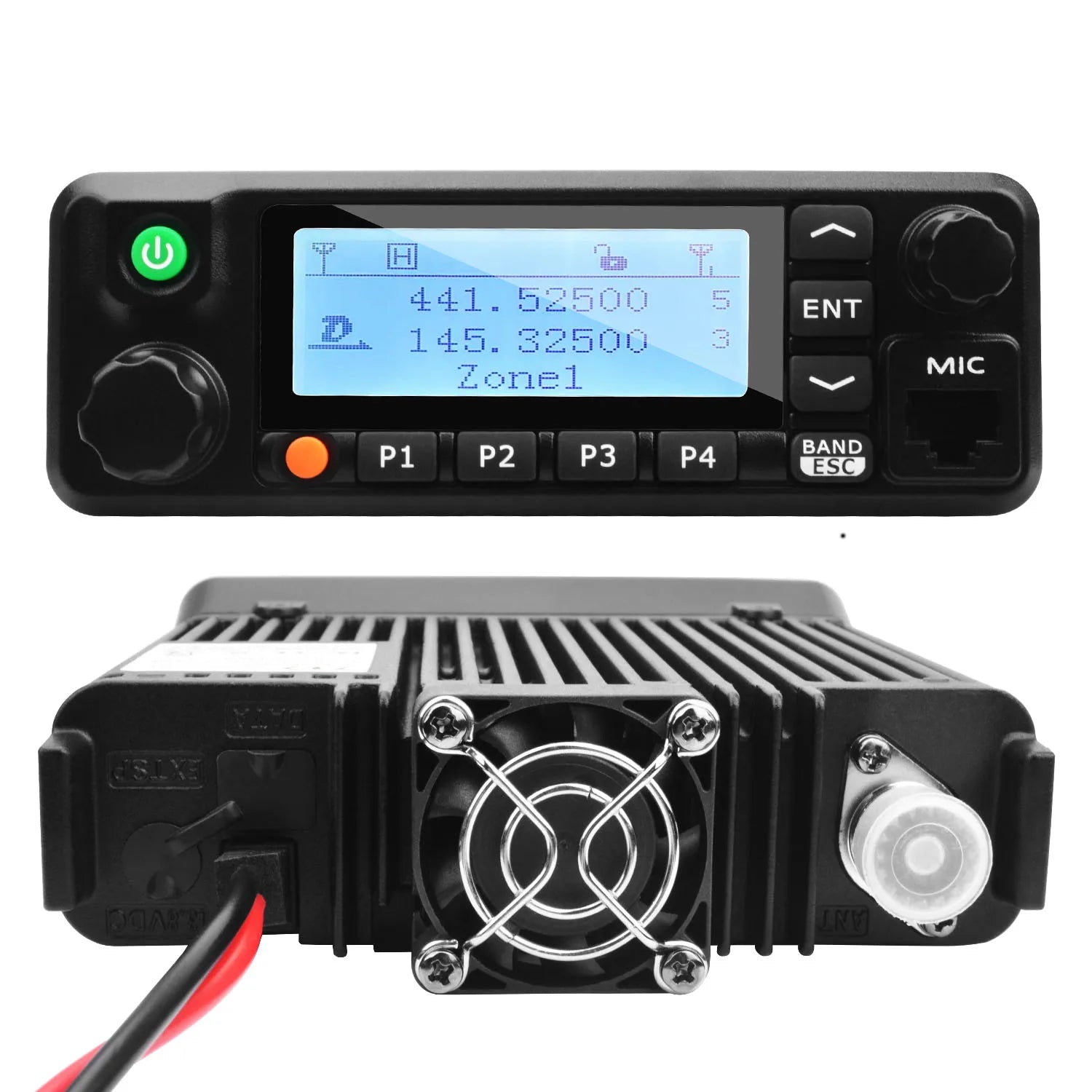

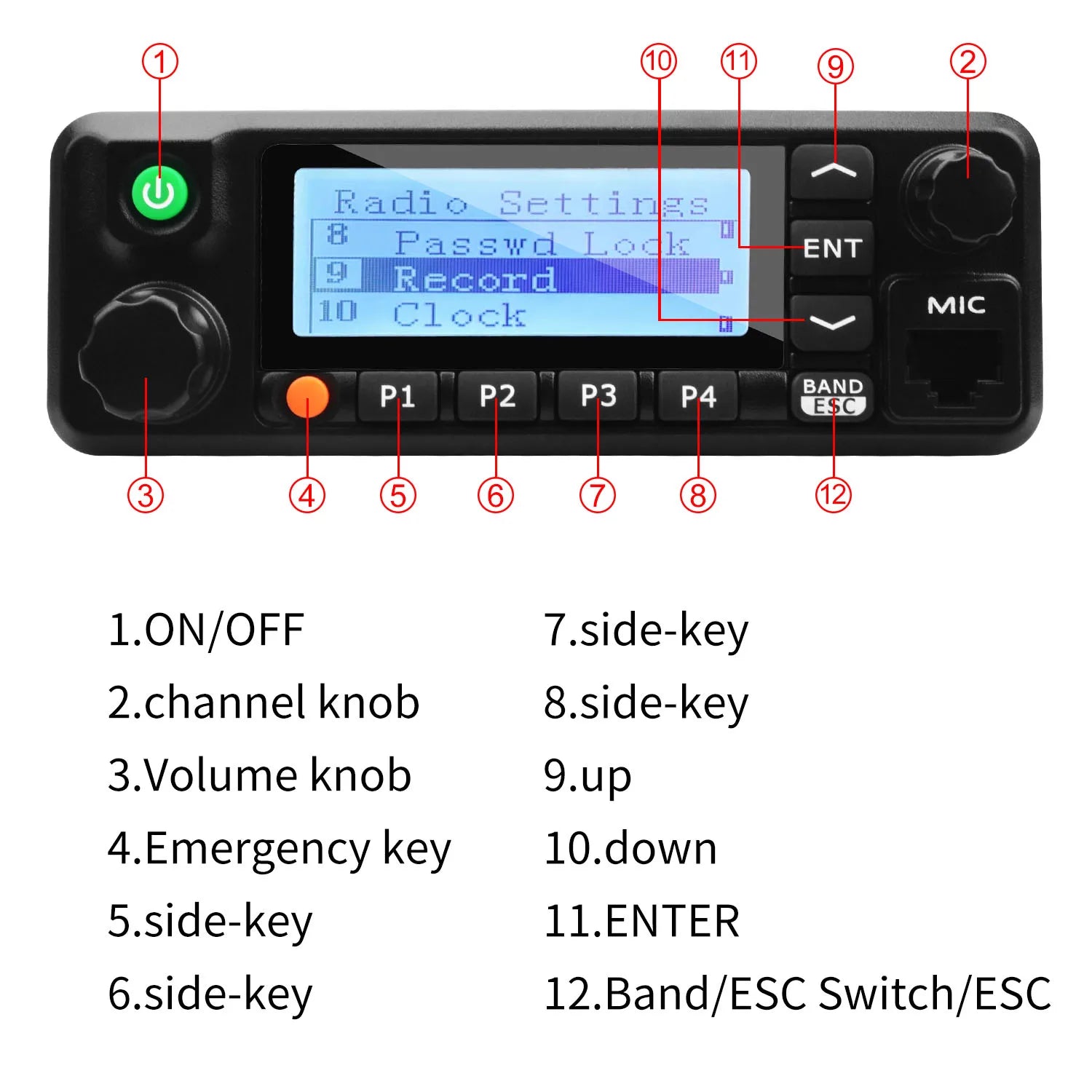

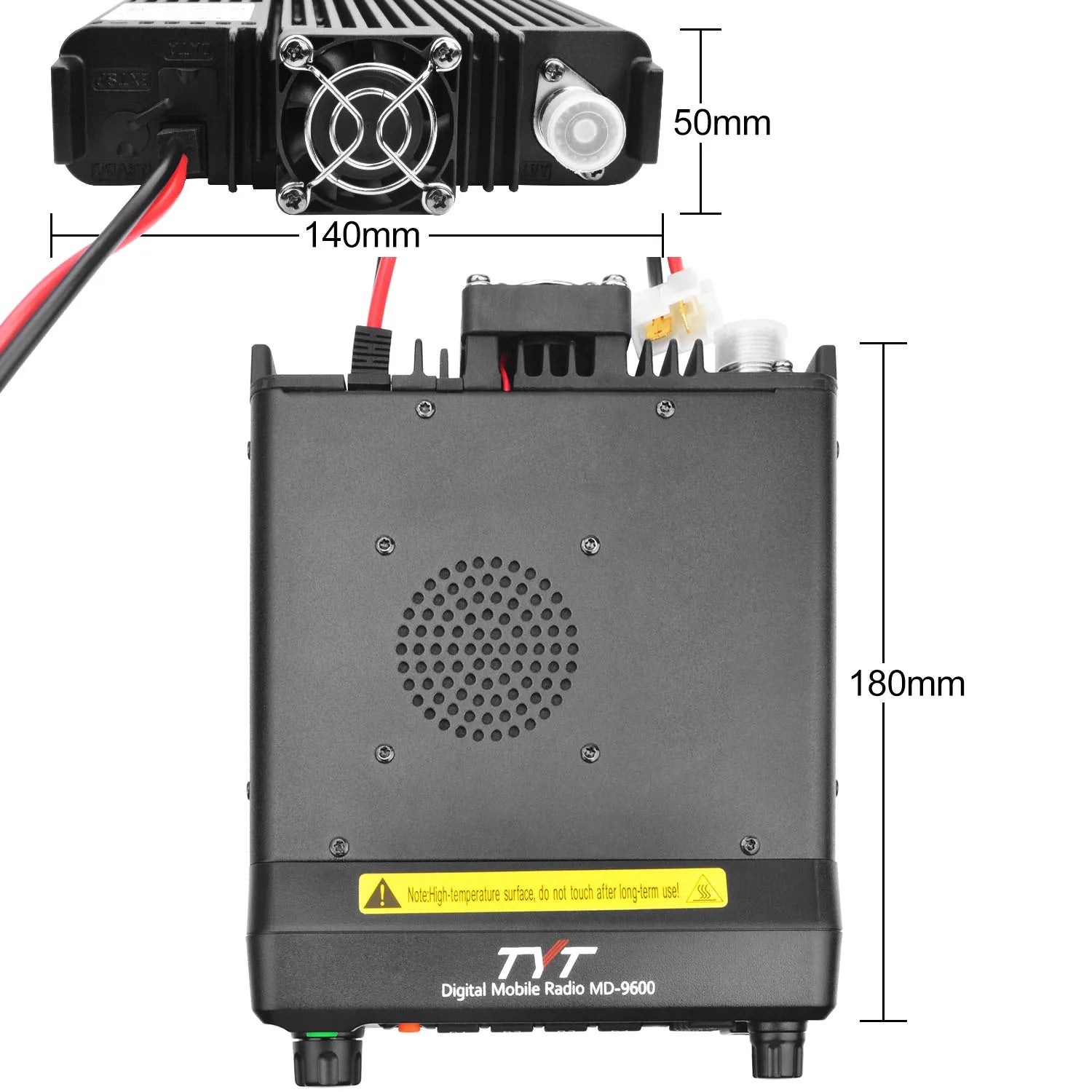

Compact and rugged, this radio measures 143×50×175mm, meeting MIL-STD-810C/D/E military standards for reliability. The bright dual display and user-friendly interface allow for effortless channel management, even in low-light conditions. Includes a microphone speaker, mounting bracket, and power cable for easy vehicle setup.
Safety and Communication Efficiency
Stay in control with emergency features like alarm, monitoring, and group or single match communication. The 5W rated audio output ensures loud, distortion-free sound. It’s your dependable partner for long-distance vehicle communication, trucking, and off-road adventures.

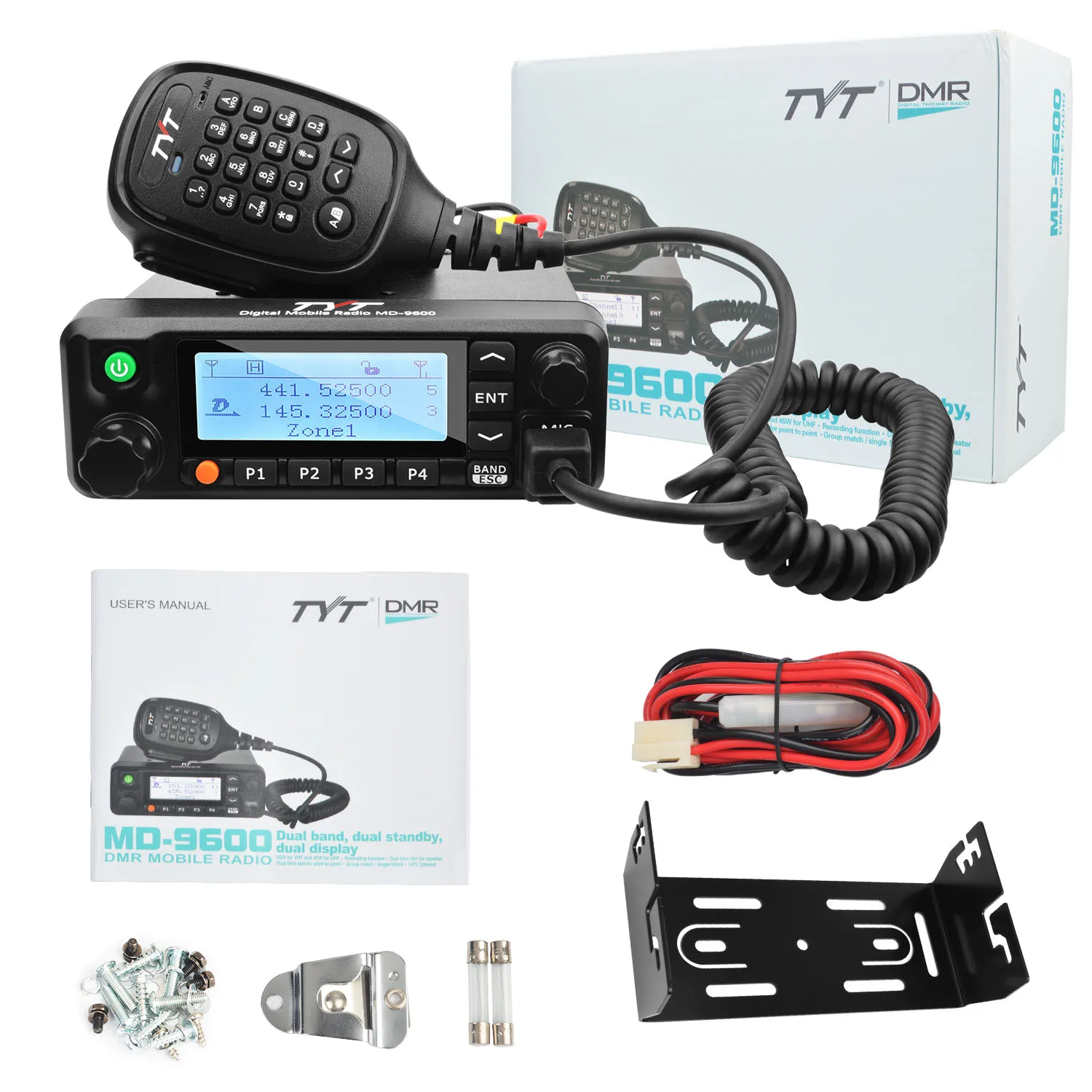

Package Includes
-
1× MD-9600 GPS DMR Digital Mobile Radio
-
1× Microphone Speaker
-
1× Power Cable
-
1× Screw Set
-
1× Radio Fixing Bracket
-
1× Microphone Clip
-
1× English User Manual
Bring clarity and control to your communication setup — order the TYT MD-9600 today from Dicordelights, your trusted source for premium long-range radios. Buy now and experience seamless, reliable communication wherever you go.

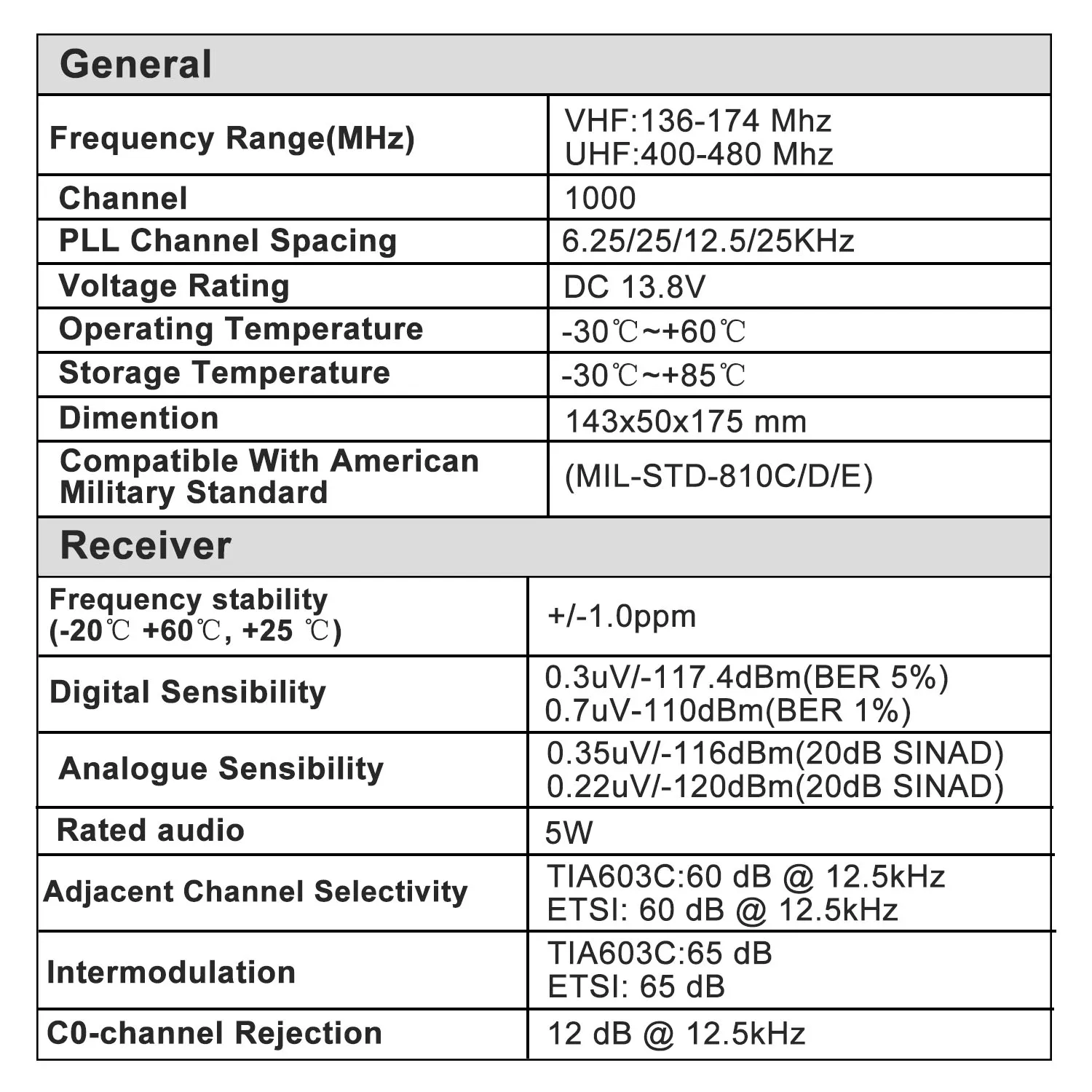

Specifications:
|
General |
|
|
Frequency Range |
VHF: 136-174MHz UHF:400-480MHz |
|
Channel |
1000 |
|
PLL Channel spacing |
6.25/12.5/25KHz |
|
Voltage rating |
DC13.8V |
|
Operating Temperature |
-30°c ~+60°c |
|
Storage Temperature |
-30°c ~+85°c |
|
Dimensions |
143*50*175mm |
|
Compatible with American Military Standard |
(MIL-STD-810C/D/E) |
|
Transmitter |
|
|
RF Power Output |
L:25W H:50W(VHF), L:25W H:45W(UHF) |
|
FM Hum and Noise |
-40dB @12.5KHz , -45dB@25KHz |
|
Modulation Limited |
+/-2.5KHz@12.5KHz, +/-5.0kHz@25KHz |
|
Conducted/radiated emission |
-36dBm< 1GHz,-30dBm> 1GHz < 4GHz |
|
Adjacent channel power |
-60dB @12.5Khz, -65Db@25KHz |
|
Audio Response |
+1dB~-3dB |
|
FM modulation |
12.5KHz:11K F3E, 25KHz:16K F3E |
|
Audio DISTORTION |
3% |
|
4FSK Digital modulation |
12.5KHz only data:7K60FXD, 12.5KHz data and audio:7K60FXE |
|
Digital protocol |
ETSI TS 102361-1,-2,-3 |
|
Digital vocoder type |
AMBE++ |
|
Digital Agreement |
DMR |
|
Receiver |
|
|
Frequency Stability |
+/-1.0ppm |
|
Digital Sensibility |
0.3uV/-117.4dBm(BER5%),0.7uV/-110dBm(BER 1%) |
|
Analogue sensibility |
0.35uV/-116dBm(20dB SINAD) 0.22Uv/-120dBm(20dB SINAD) |
|
Rated Audio |
5W |
|
Adjacent Channel selectivity |
TIA603C:60dB @12.5Khz, ETSI:60Db @12.5KHz |
|
Intermodulation |
TIA603C:65dB ETSI:65dB |
|
Co-channel REJECTION |
12dB @12.5KHz |
|
Spurious Rejection |
TIA603C:70Db ETSI:70dB |
|
Audio distortion @rated audio |
≤3% |
|
FM Hum and Noise |
-40dB @12.5KHz,-45Db@25KHz |
|
Audio Response |
+1dB~-3dB |
|
Spurious emission |
-57dBm@ < 1GHz, -47dBm @ >1GHz |
|
Block |
84dB |
Package Contains:
1× MD-9600 GPS DMR Digital Mobile radio
1× Microphone speaker
1× Power Cable
1× Screw sets
1× Radio Fixing Metal Bracket
1×Microphone Clip
1× English Users' Manual
