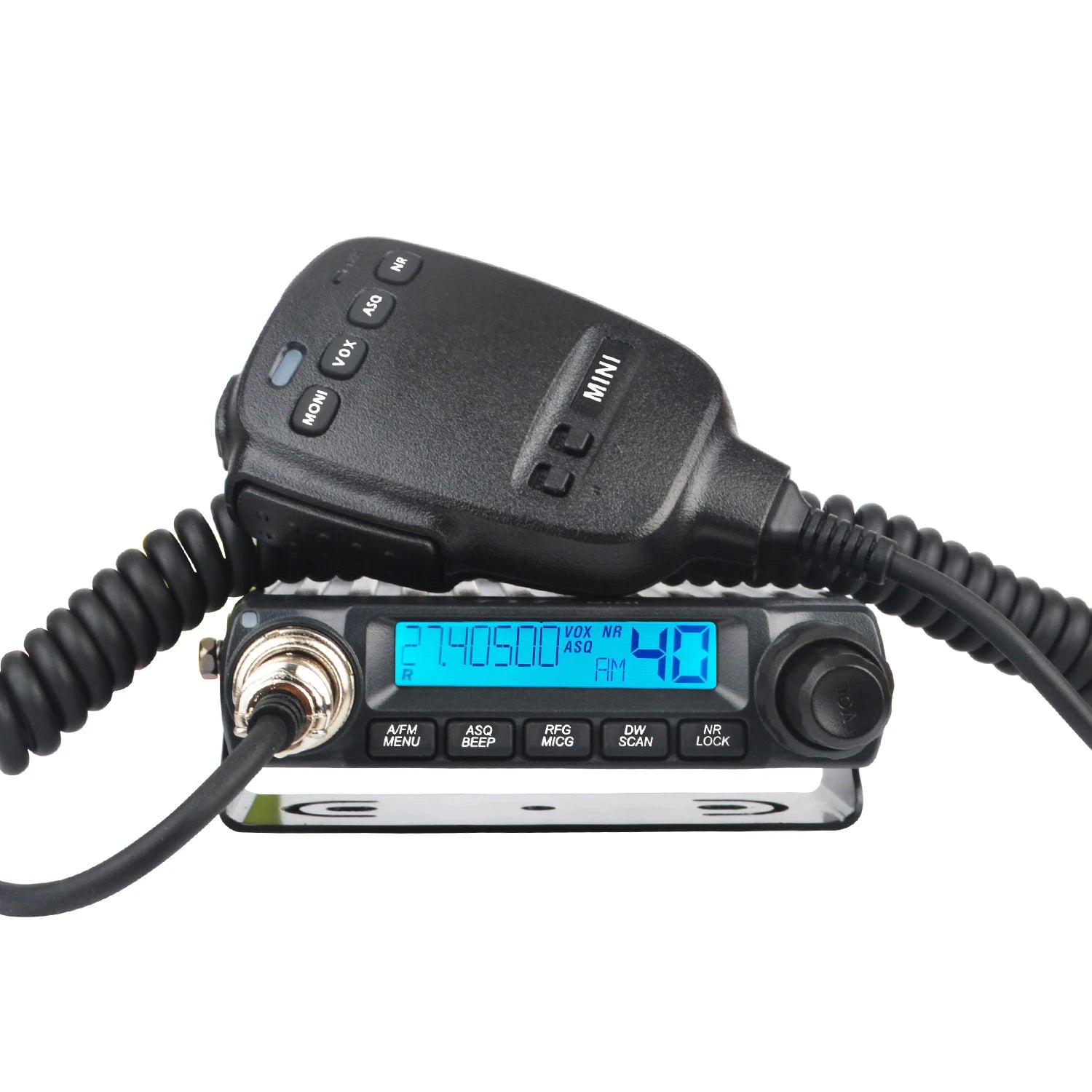

TYT 11 Meters Radio 27MHz CB Mobile Transceiver 40Ch FM AM Modulation 4W Compact Mini European Citizen Band Walkie Talkie
-
Enjoy Stress Free Shopping with Free Shipping & Returns!
TYT 11 Meters Radio 27MHz CB Mobile Transceiver 40Ch FM AM Modulation 4W Compact Mini European Citizen Band Walkie Talkie
SPECIFICATIONS
Battery Included: No
Brand Name: HIROYASU
Dimensions: 145*107*27mm
Frequency Range: 26.96500-27.40500MHz
High-concerned chemical: None
Is_Display: Yes
Material: Plastic
Maximum Range: 10km-50km
Model Number: CB Mini
Origin: Mainland China
Output Power(w): 3w-5w
Storage Channel: 40
Use: Motor vehicle
Walkie Talkie Type: Car
Waterproof / Water-Resistant: No
TYT 11 Meters Radio 27MHz CB Mobile Transceiver 40Ch FM AM Modulation 4W Compact Mini European Citizen Band Walkie Talkie 26.96500-27.40500MHz

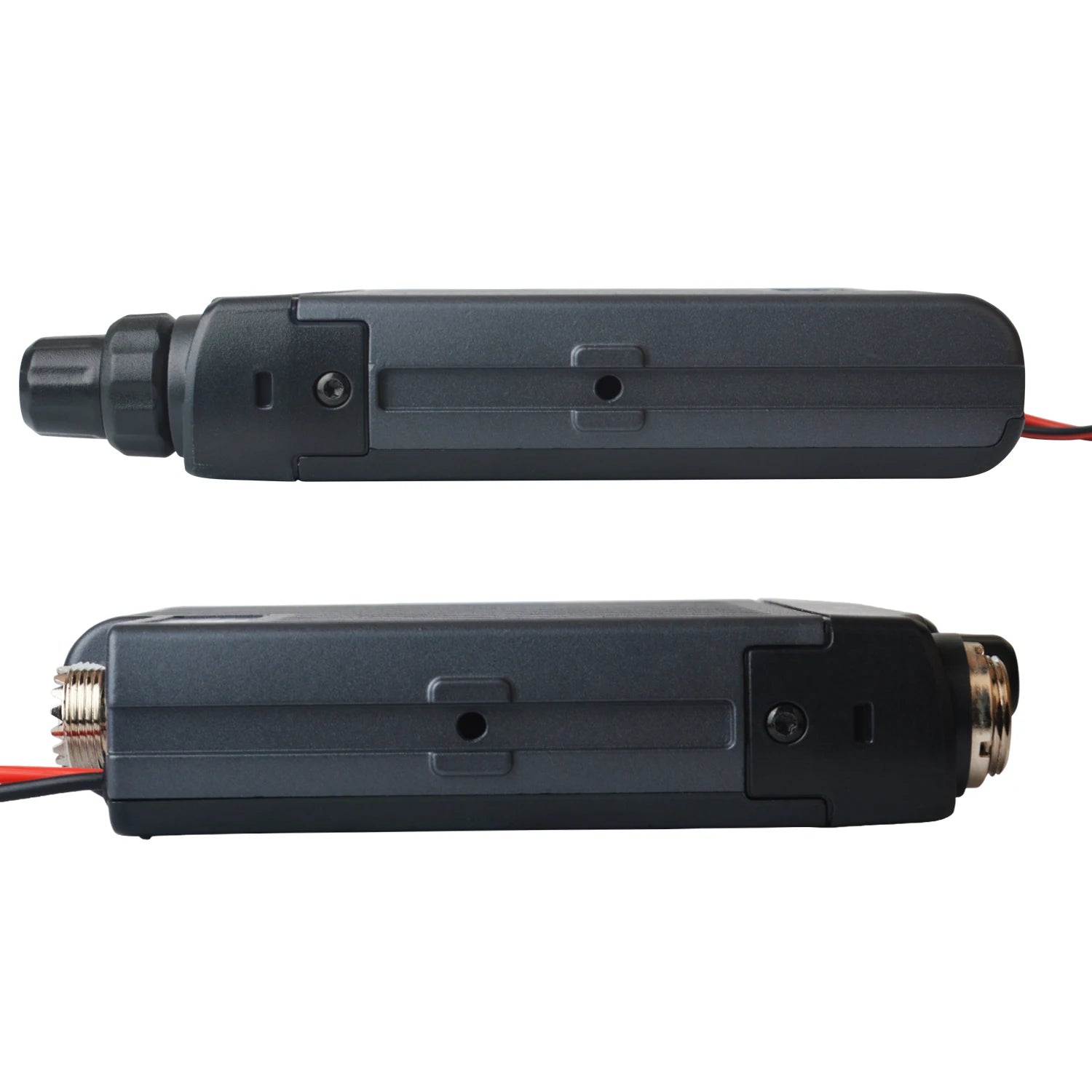

Photos:
Features:

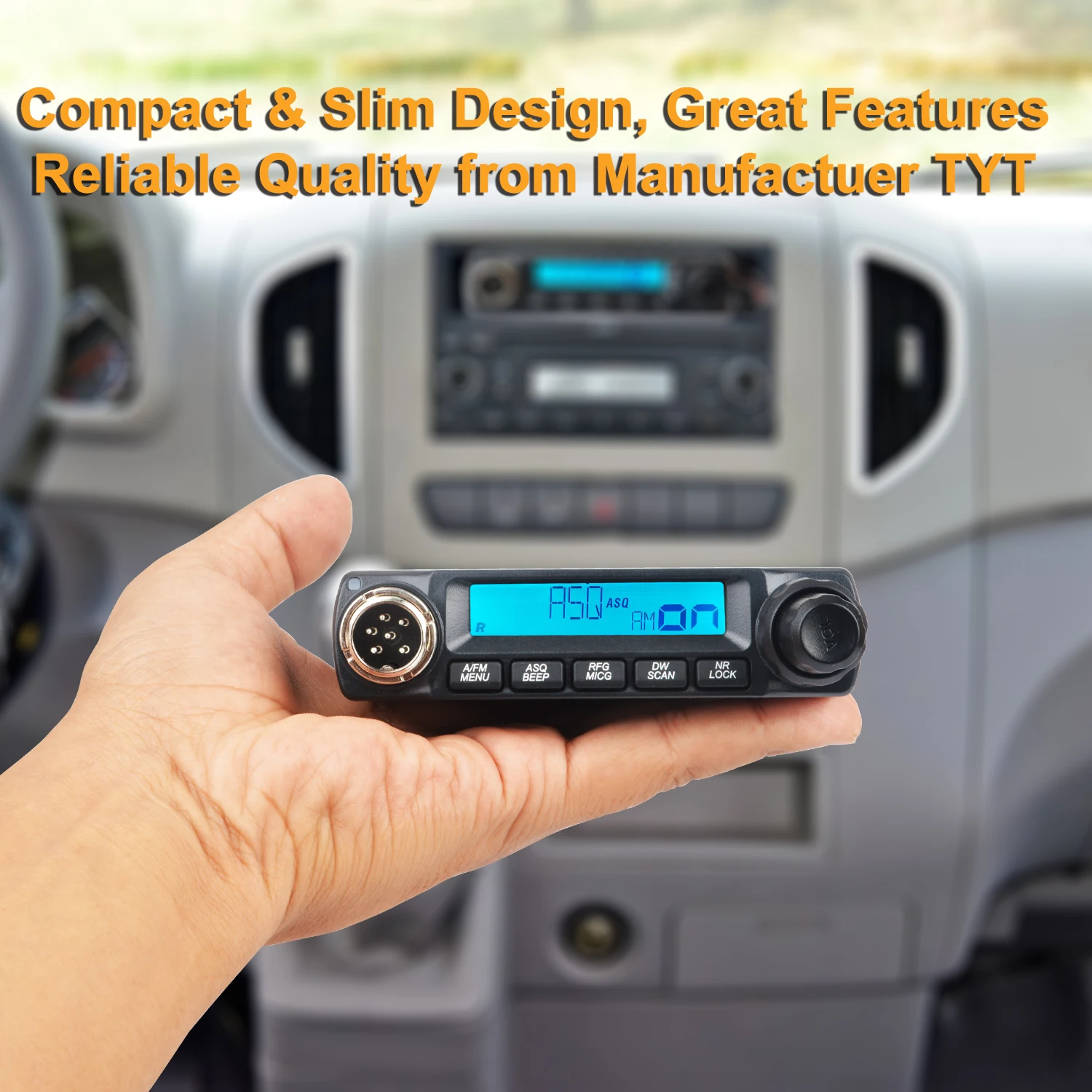

compact mini Size, slim
350gram light weight radio body (microphone speaker not included)
Modulation Mode: FM/AM
Noise Reduce
Echo
RF Gain Adjustment
Mic Gain Adjustment

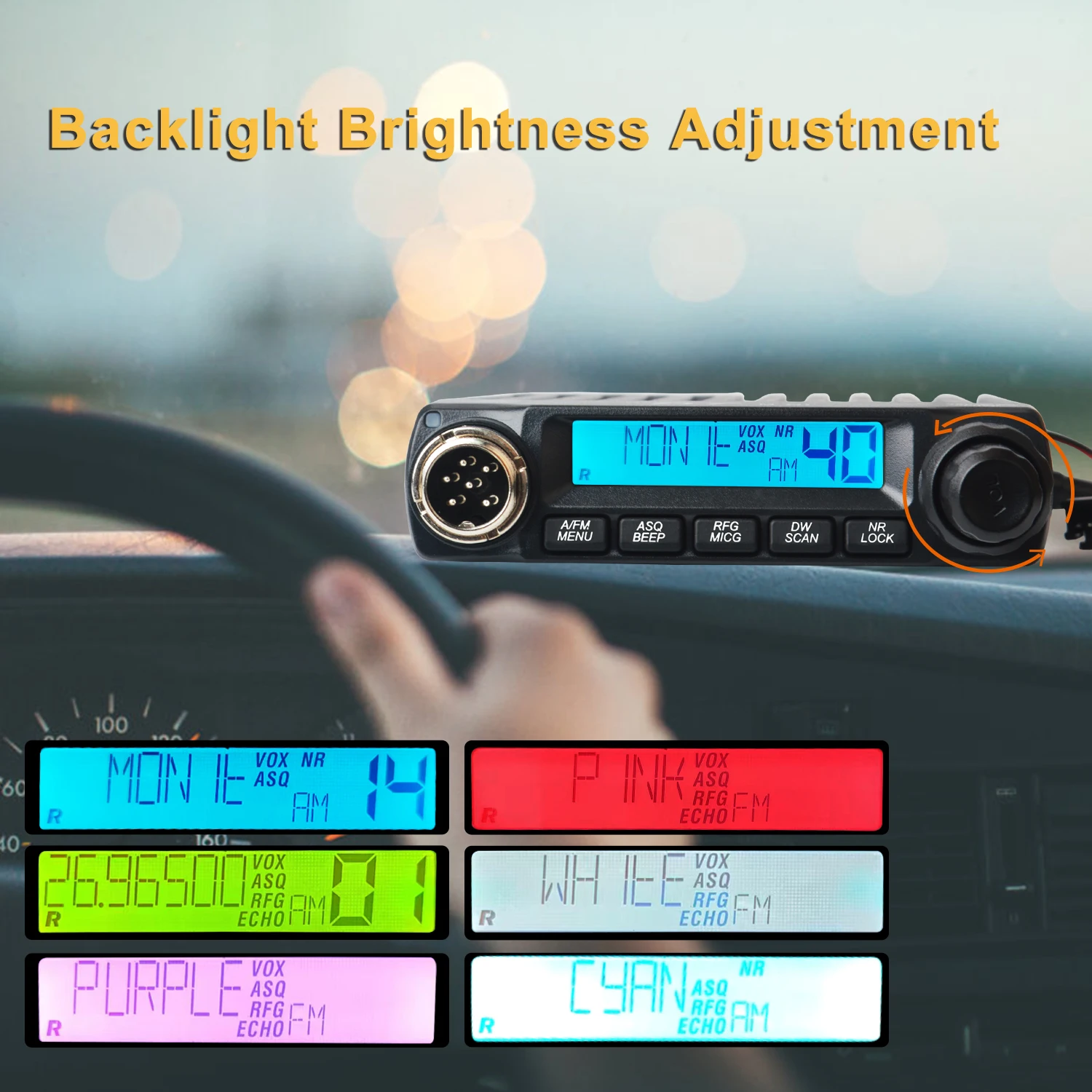

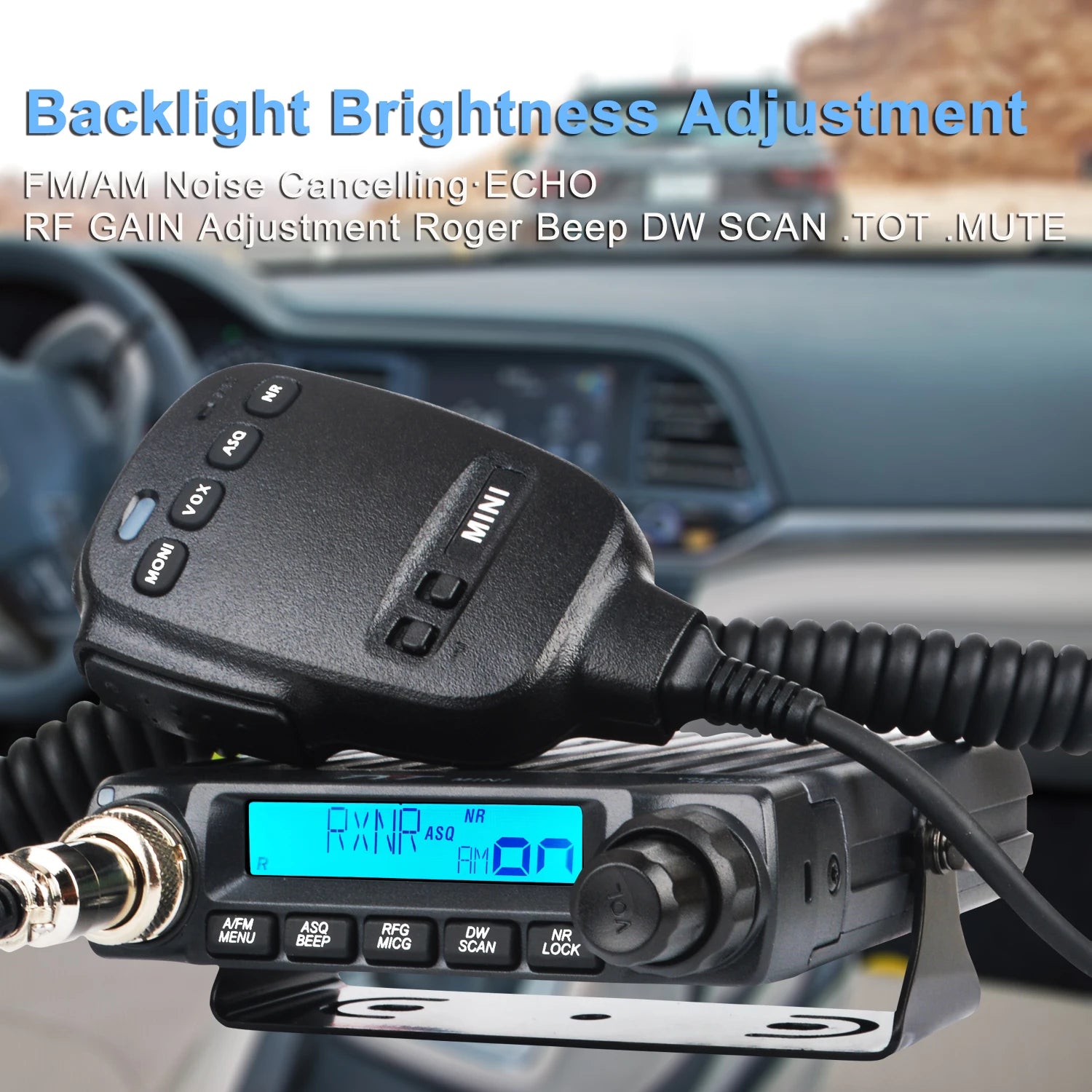

Backlight Brightness Adjustment
Beep Level Adjustment
Roger Beep
DW
SCAN
TOT
MUTE

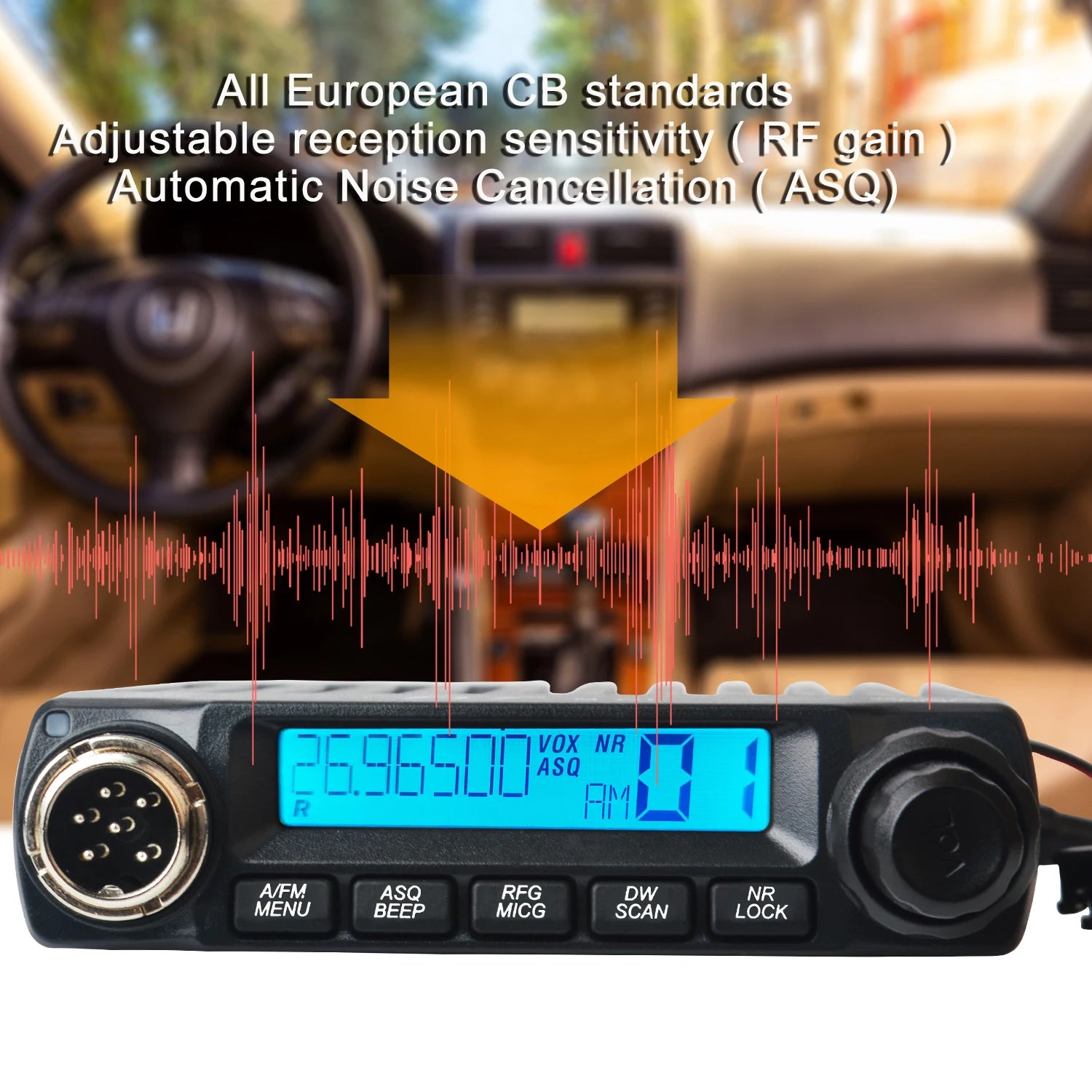

ASQ/SQ Feature

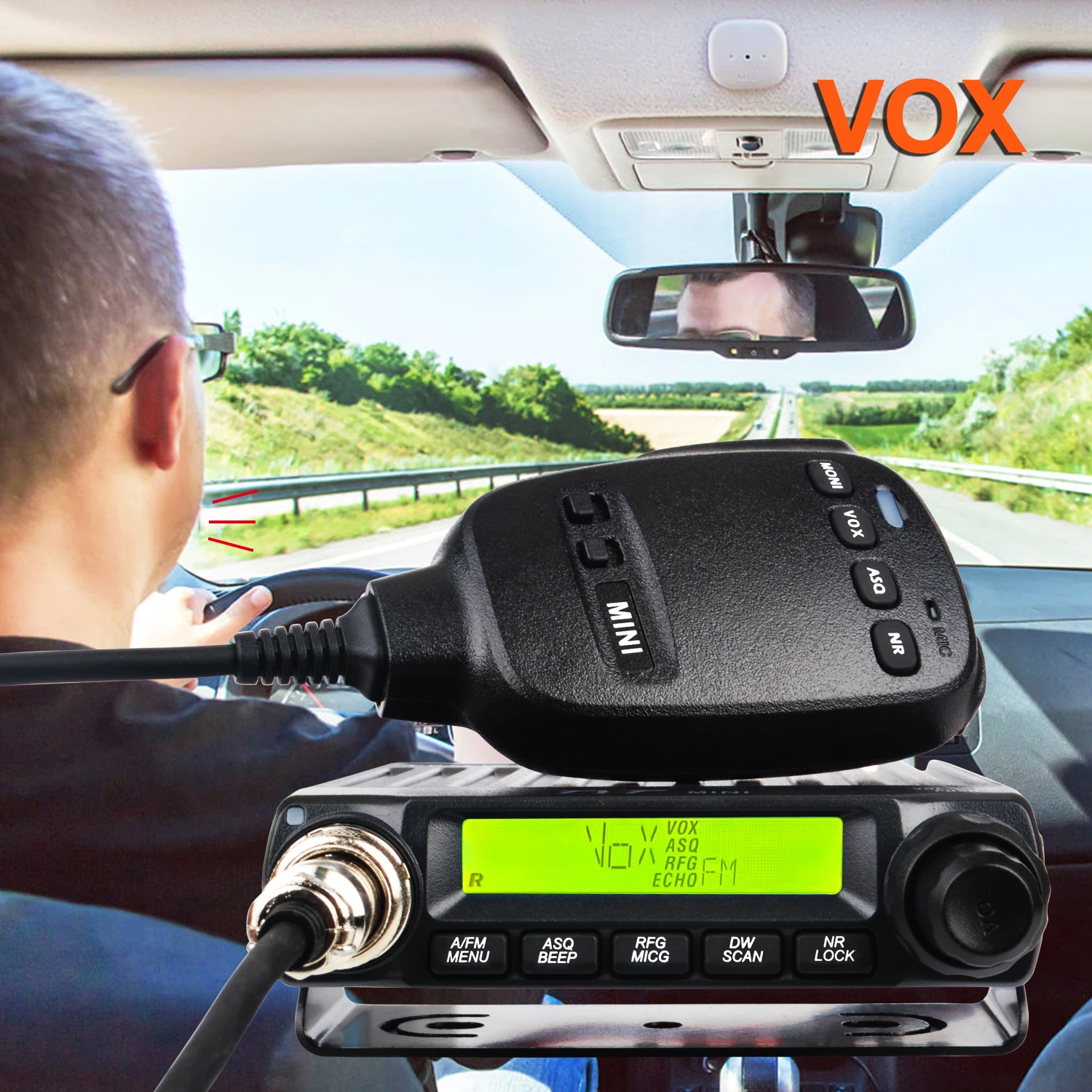

VOX
Reset
Specifications:
General | |
Frequency Range |
26.96500-27.40500MHz |
Frequency Band |
European CB Band (Citizen band) |
Channels |
40 channels |
Frequency Control |
Phase-locked-loop Synthesizer |
Frequency Tolerance |
±5.0ppm |
Temperature Range |
-20°c+50°c |
Microphone |
With push-to-talk UP/DN buttons and coiled cord |
Input Voltage |
13.8V |

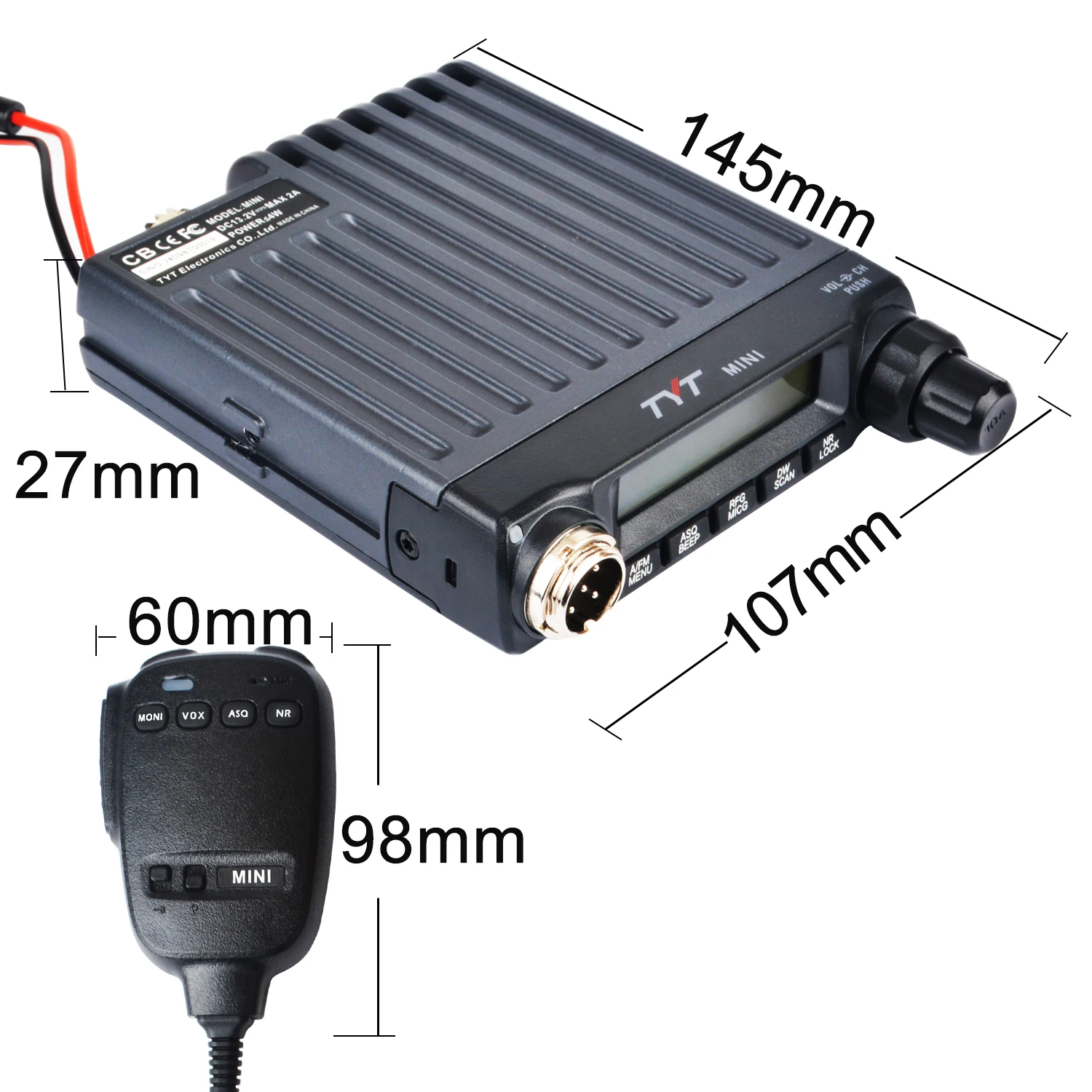

Dimensions |
145*107*27mm |
Weight |
350g (Radio body only, speaker microphone excluded) |

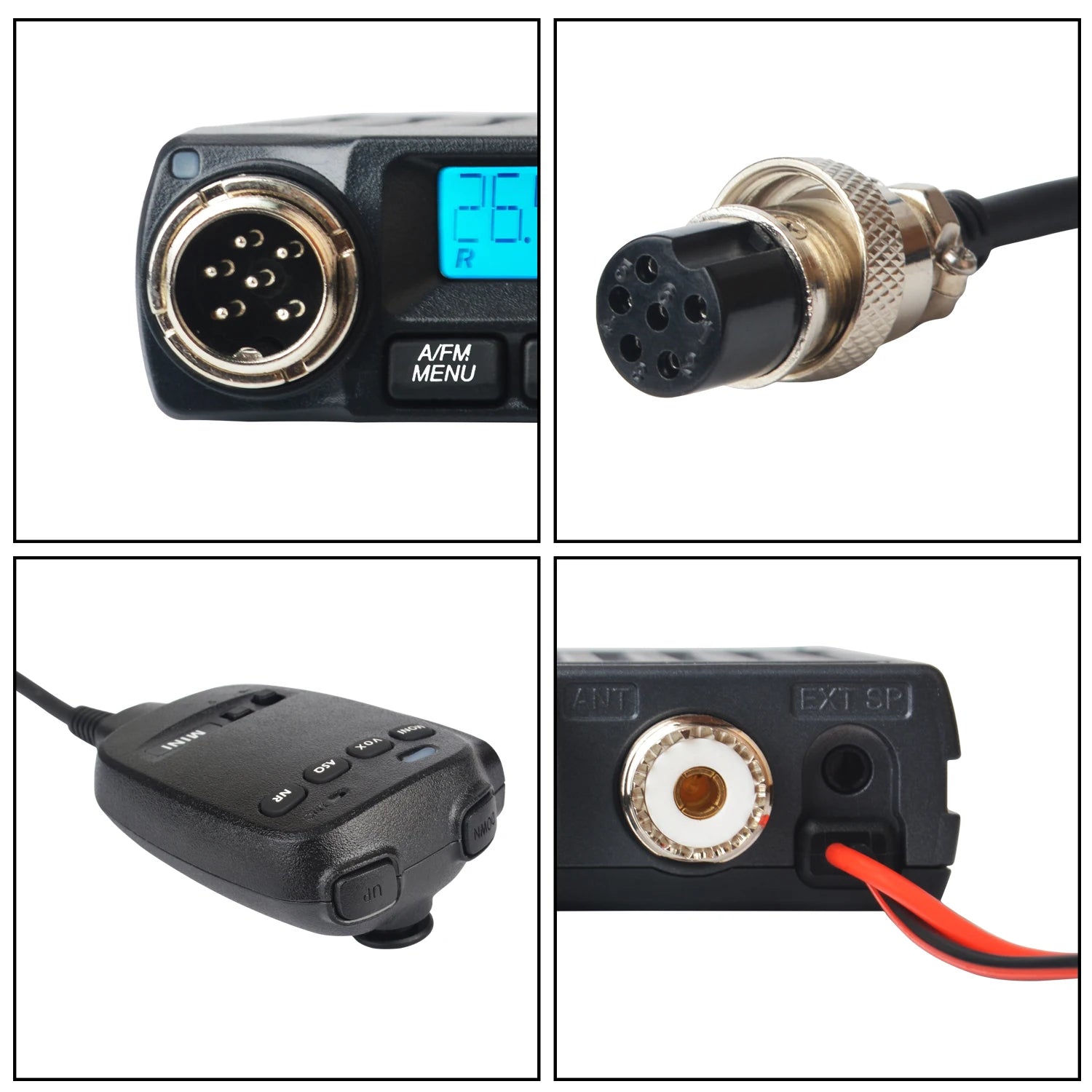

Antenna Connector |
UHF,SO239 |
Transmitter | |
Power Output |
4W |
Current Drain |
Max.2A (With modulation) |
Modulation |
FM/AM |
Unwanted Sideband |
50dB |
Frequency Response |
AM/FM:450 to 2500Hz |
Receiver | |
Sensitivity |
AM:1.0uV for 10dB (S+N)/N at greater than 1/2watt of audio output. FM:1.0uV for 20dB (S+N)N at greater than 1/2 watt of audio output. |
Selectivity |
AM/FM:6dB@3kHz,50dB@9kHz |
Adjacent-Channel Selectivity |
60dB AM/FM |
Image Rejection |
More than 65dB |
IF Frequency |
AM/FM:10.695MHz 1stIF,455KHz 2ndIF |
RF Gain Control |
45dB adjustable |
Automatic Gain Control (AGC) |
Less than 10dB change in audio output for inputs from 10uV to 100,000uV |
Squelch |
Adjustable,threshold less than 0.5uV. Automatic Squelch control (only AM/FM) 0.5uV |
Audio Output Power |
2w 16 ohms |
Frequency Response |
AM/FM:300 to 2800Hz |
Note: Specifications are subject to change without notice due to advancements in Technology.

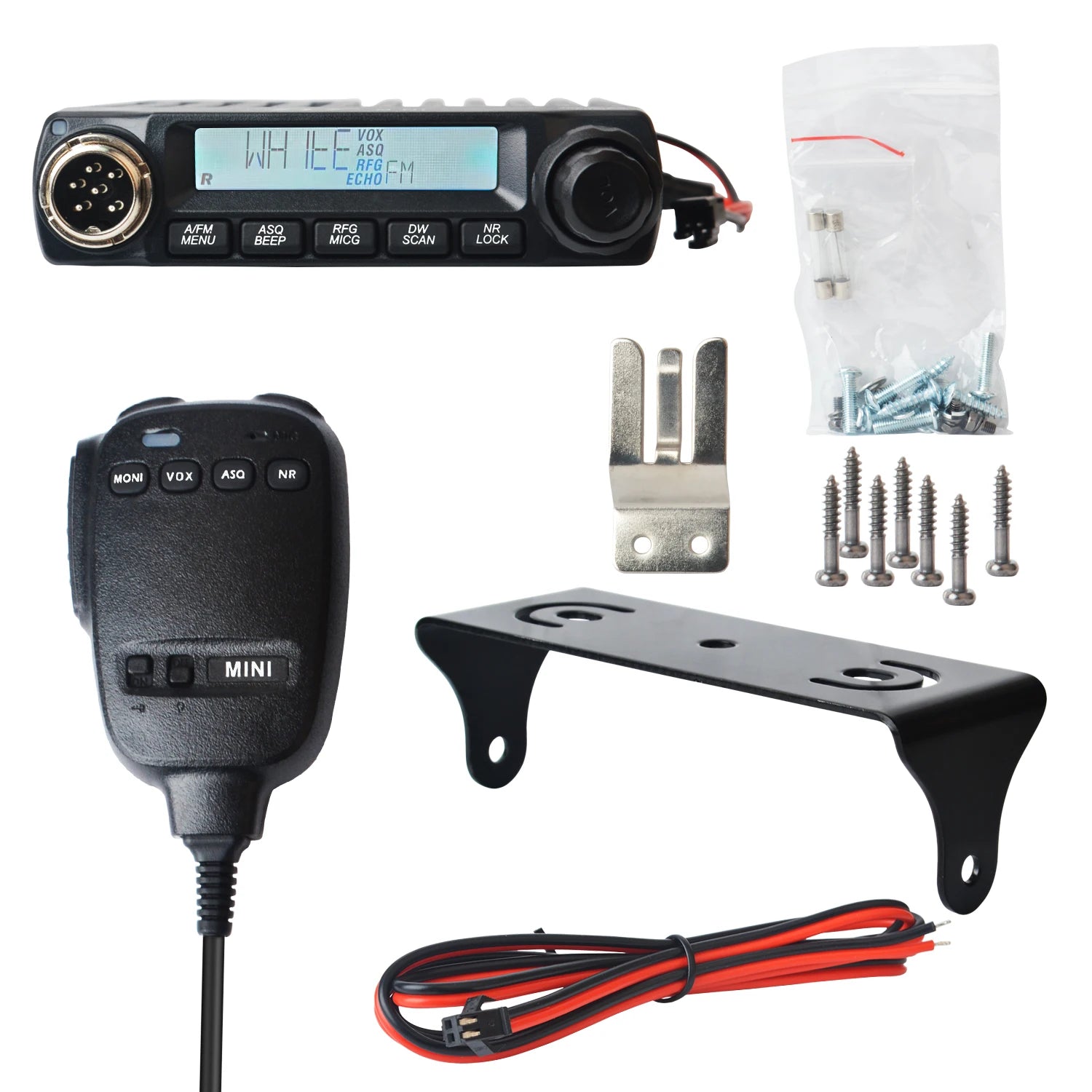

Package Contains:
1×TYT CB Mini Radio Body
1× Speaker Mic
1× Bracket
1× Power Cable
1× Screw Sets
1× Hook for Speaker Mic
2×Fuse
1×ENG Manual
